Запчасти Case CX210D NLC (35.734.AD[07]) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

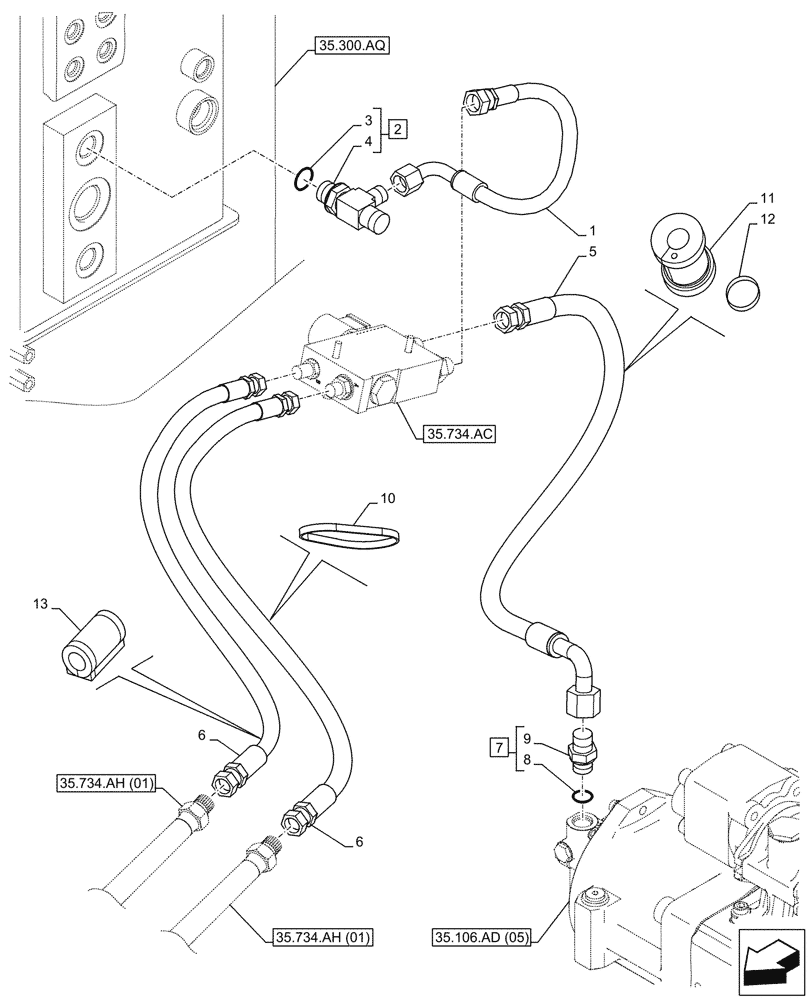

Схема запчастей Case CX210D NLC - (35.734.AD[07]) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
35.734.ac
6
7
12
10
6
9
3
5
11
2
1
13
4
8
35.300.aq
35.734.ah (01)
35.734.ah (01)
35.106.ad (05)

Артикул

Название

Примечание

Количество

1

167873A1

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

400mm, from Sump Tank to Solenoid valve

1шт.

2

KHJ1300

TEE

ASSY, G1/2" x G3/8" x G1/2", Incl 3, 4

1шт.

3

150539A1

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 2

1шт.

5

KRJ40220

HYDRAULIC HOSE

9mm ID x 1410mm, from Solenoid Valve to Hydraulic Pump

1шт.

6

KHJ34910

HYDRAULIC HOSE

from Solenoid Valve to Plug

2шт.

7

152747A1

ADAPTER

ASSY,G1/4" x G3/8" , Incl 8, 9

1шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

10

150071A1

MOUNTING CLIP

380mm

4шт.

11

KHJ33450

HOSE CLAMP

1шт.

12

150496A1

MOUNTING CLIP

1шт.

13

KHJ2679

HOSE CLAMP

1шт.

Выбрано товаров: 13
