(35.360.AK[08]) - VAR - 461869, 461870 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D NLC (35.360.AK[08]) - VAR - 461869, 461870 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

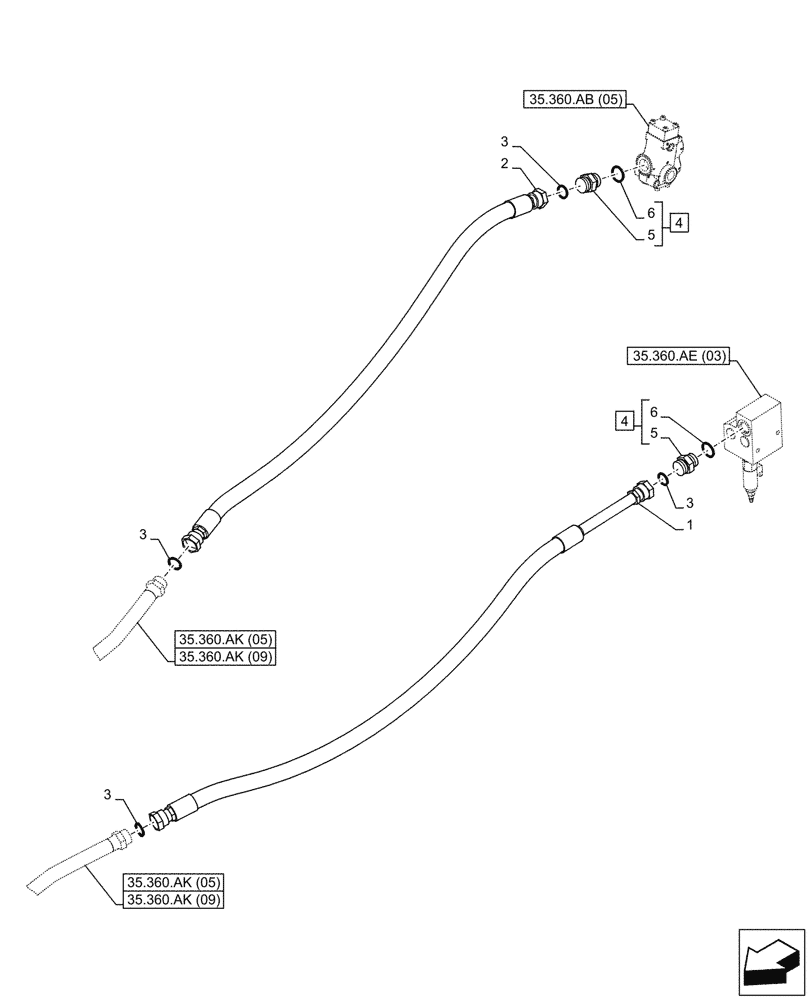

Схема запчастей Case CX210D NLC - (35.360.AK[08]) - VAR - 461869, 461870 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.ak (05)
5
6
1
4
5
2
3
3
3
4
3
35.360.ab (05)
35.360.ak (09)
35.360.ak (09)
35.360.ae (03)
6
35.360.ak (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ29370

HYDRAULIC HOSE

25mm ID x 1580mm, From Relief Valve to Stop Valve

1шт.

2

KSJ13741

HYDRAULIC HOSE

25mm ID x 1390mm, From Direction Valve to Stop Valve

1шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

4

KHJ1349

ADAPTER

ASSY, Incl 5 - 6

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

152211A1

O-RING

2шт.

Выбрано товаров: 6
