(35.360.AK[01]) - VAR - 461561, 461583, 461865, 461867 - BOOM, LINES, HAMMER CIRCUIT

Запчасти Case CX210D NLC (35.360.AK[01]) - VAR - 461561, 461583, 461865, 461867 - BOOM, LINES, HAMMER CIRCUIT (35) - HYDRAULIC SYSTEMS

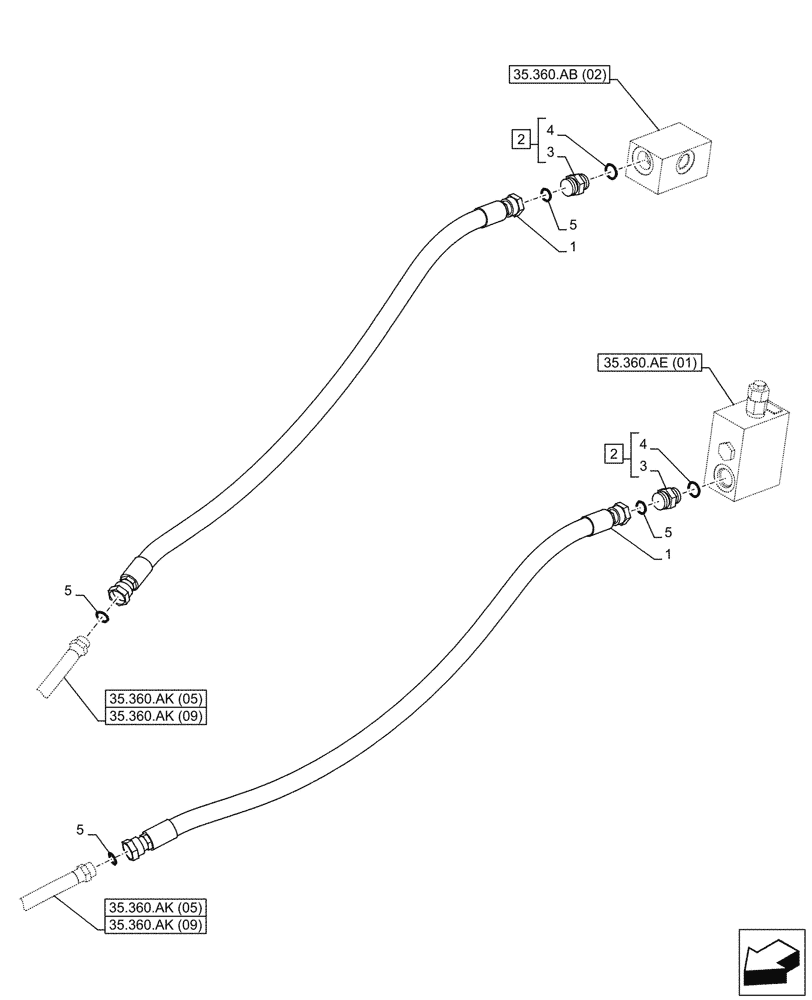

Схема запчастей Case CX210D NLC - (35.360.AK[01]) - VAR - 461561, 461583, 461865, 461867 - BOOM, LINES, HAMMER CIRCUIT (35) - HYDRAULIC SYSTEMS
35.360.ak (05)
5
5
4
3
2
1
3
1
5
5
4
2
35.360.ak (09)
35.360.ak (09)
35.360.ae (01)
35.360.ab (02)
35.360.ak (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ13741

HYDRAULIC HOSE

25mm ID x 1390mm, to Stop Valve

2шт.

2

KHJ1349

ADAPTER

ASSY, Incl 2 - 10

2шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

2шт.

4

152211A1

O-RING

2шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

Выбрано товаров: 5
