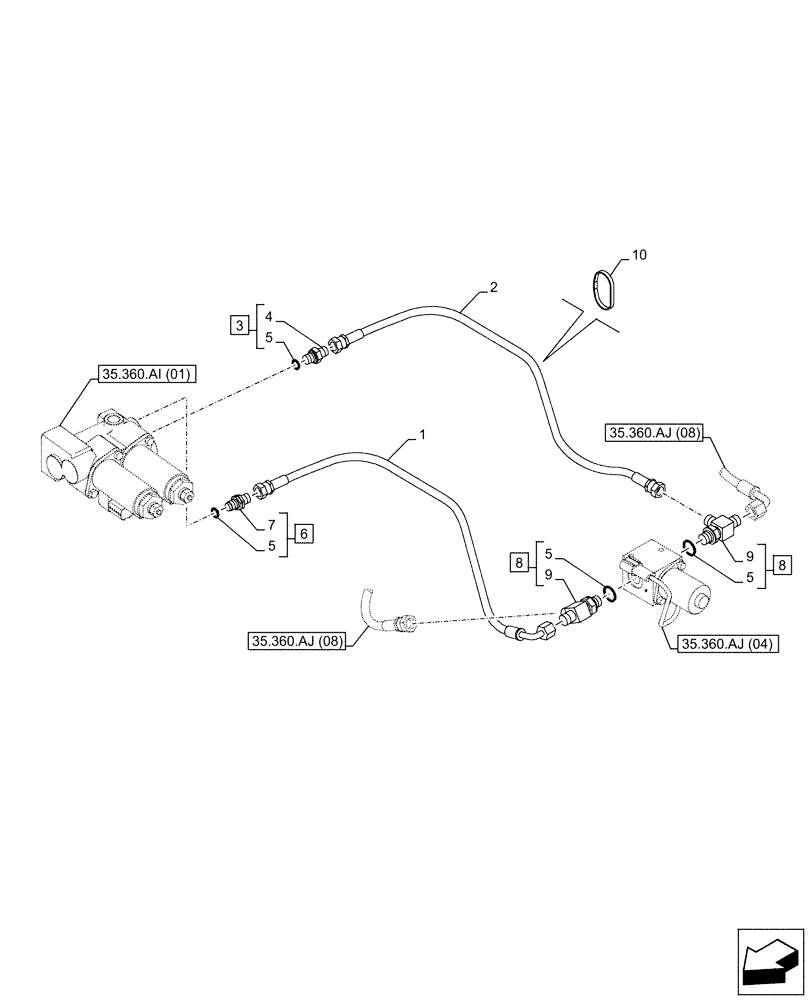

Запчасти Case CX210D NLC (35.360.AJ[07]) - VAR - 461869, 461870 - HAMMER CIRCUIT, SOLENOID VALVE, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2163

HOSE

6mm ID x 620mm, From Solenoid Valve to Solenoid Valve

1шт.

2

KHJ31500

HOSE

6mm ID x 620mm, From Solenoid Valve to Solenoid Valve

1шт.

3

161841A1

HYD CONNECTOR

ASSY, Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 7, 5 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

159497A1

TEE

ASSY, Incl 9, 5 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

2шт.

10

150496A1

MOUNTING CLIP

1шт.
