(35.360.AJ[04]) - VAR - 461869 - HAMMER CIRCUIT, SOLENOID VALVE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D NLC (35.360.AJ[04]) - VAR - 461869 - HAMMER CIRCUIT, SOLENOID VALVE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

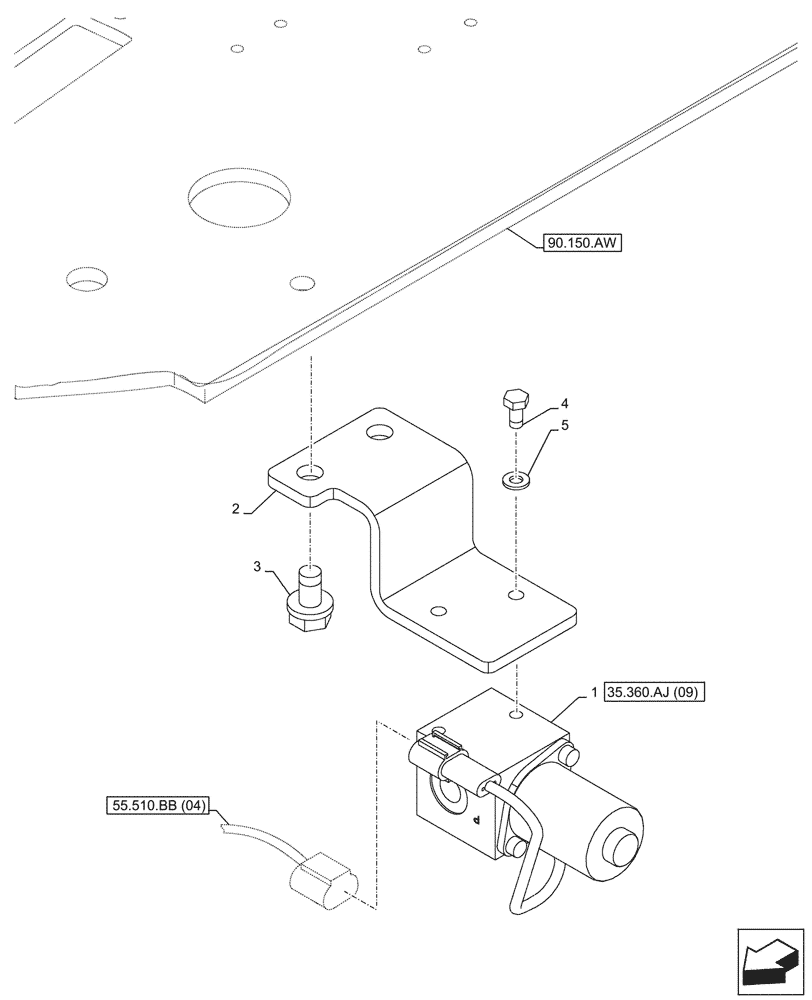

Схема запчастей Case CX210D NLC - (35.360.AJ[04]) - VAR - 461869 - HAMMER CIRCUIT, SOLENOID VALVE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
90.150.aw
4
5
1
2
3
55.510.bb (04)
35.360.aj (09)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162538A1

VALVE

ASSY

1шт.

2

KHJ30520

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

2шт.

4

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

5

183-106VR

SPRING WASHER

2шт.

Выбрано товаров: 5
