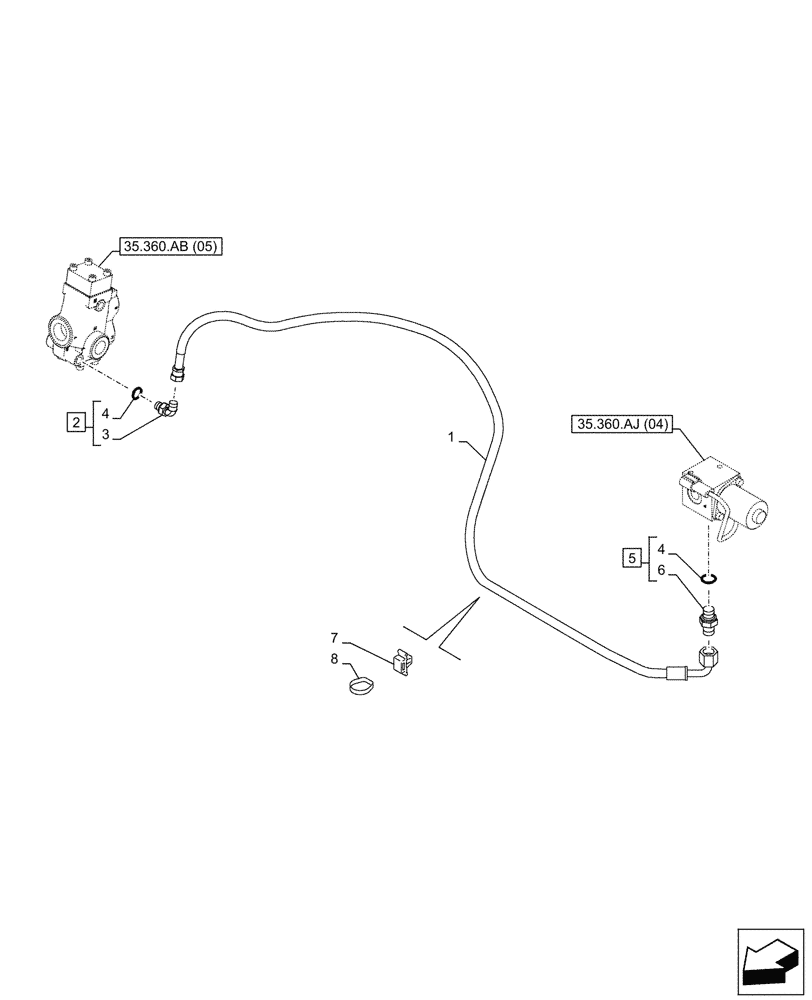

Запчасти Case CX210D NLC (35.360.AJ[03]) - VAR - 461869 - HAMMER CIRCUIT, SOLENOID VALVE, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ33830

HOSE

06mm ID x 4500mm, From Direction Valve to Solenoid Valve

1шт.

2

KHJ28580

ELBOW

ASSY, Incl 3, 4 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 2

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6, 4 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

7

KHR10220

MOUNTING CLIP

3шт.

8

150496A1

MOUNTING CLIP

3шт.
