Запчасти Case CX210D NLC (35.360.AJ[02]) - VAR - 461865, 461867 - HAMMER CIRCUIT, SOLENOID VALVE, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

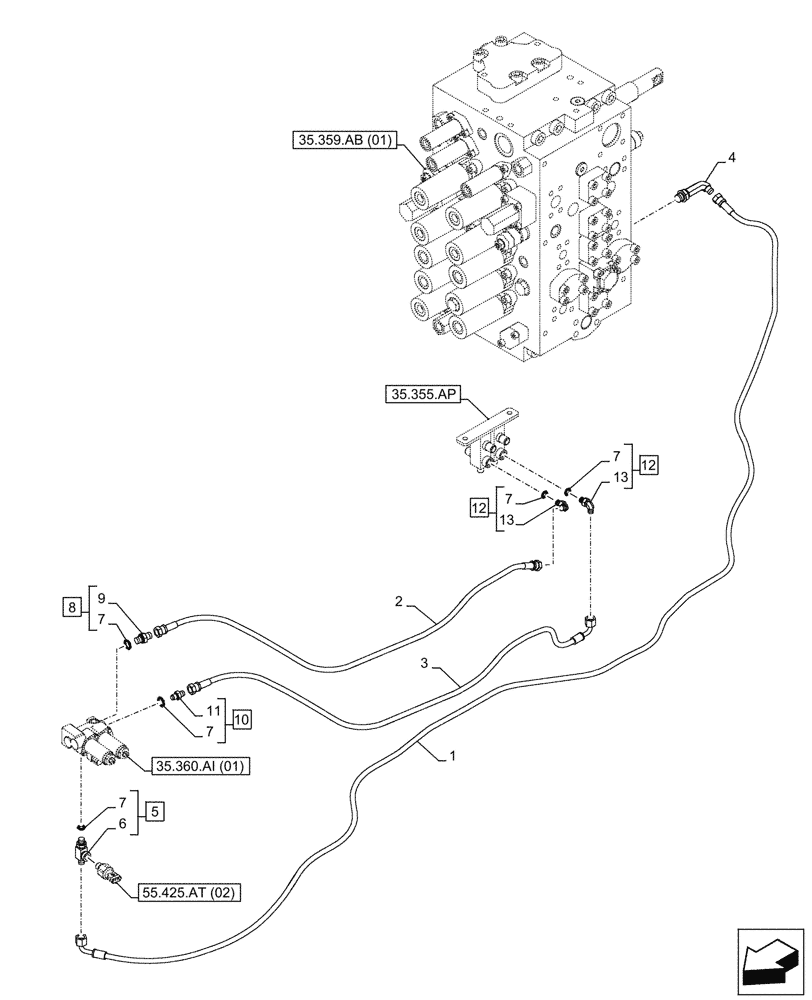

Схема запчастей Case CX210D NLC - (35.360.AJ[02]) - VAR - 461865, 461867 - HAMMER CIRCUIT, SOLENOID VALVE, LINES, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.355.ap
5
3
7
4
1
2
13
11
7
12
13
7
10
7
7
6
12
8
9
35.360.ai (01)
35.359.ab (01)
55.425.at (02)

Артикул

Название

Примечание

Количество

1

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

6mm ID x 3100mm, From Main Control Valve to Solenoid Valve

1шт.

2

KHJ2051

HOSE

6mm ID x 1050mm, From Solenoid Valve to Drain Block Valve

1шт.

3

KHJ2092

HOSE

6mm ID x 1100mm, From Solenoid Valve to Drain Block Valve

1шт.

4

KHJ28880

ELBOW

1шт.

5

167666A1

FITTING

ASSY, Incl 6, 7 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 5

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

8

161841A1

HYD CONNECTOR

ASSY, Incl 7 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 7 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

12

KHJ28580

ELBOW

ASSY, Incl 7 (Qty 1), 13

2шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

2шт.

Выбрано товаров: 13
