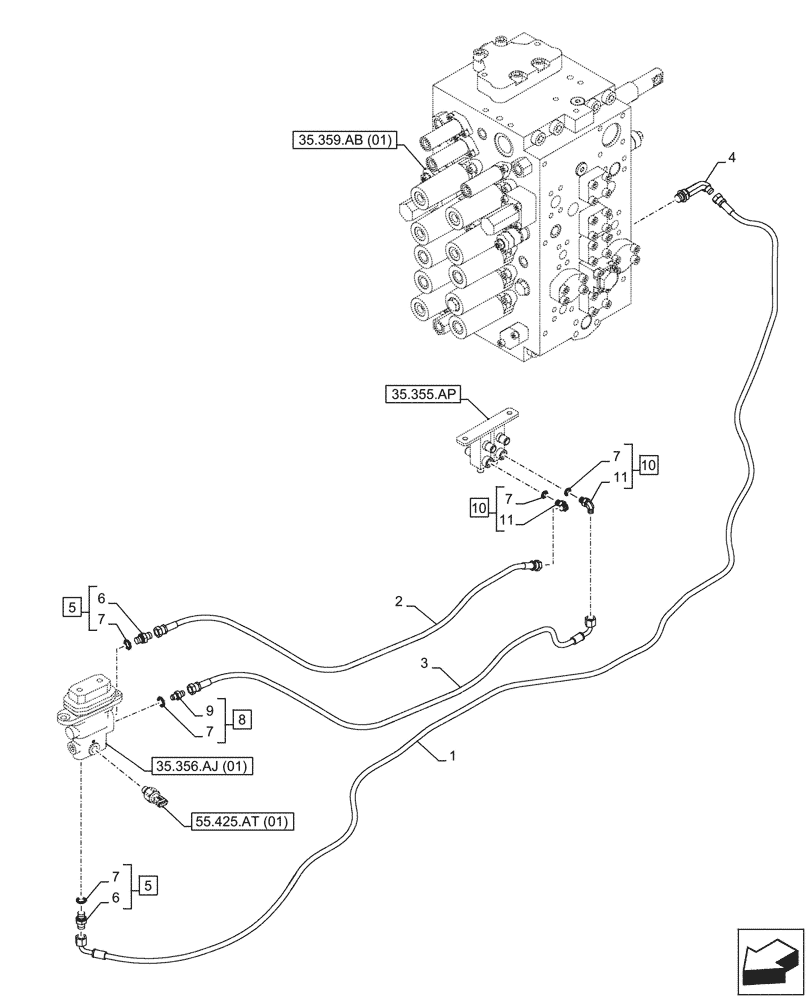

Запчасти Case CX210D NLC (35.360.AJ[01]) - VAR - 461561, 461583 - PEDAL, REMOTE CONTROL VALVE, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

6mm ID x 3100mm, From Main Control Valve to Pedal Valve

1шт.

2

KHJ2052

HOSE

6mm ID x 1100mm, From Pedal Valve to Drain Block Valve, Serial Range: -C0495

1шт.

2

KHJ2033

HOSE

6mm ID x 850mm, From Pedal Valve to Drain Block Valve, Start Serial: D0495

1шт.

3

KHJ2146

HOSE

6mm ID x 1200mm, From Pedal Valve to Drain Block Valve, Serial Range: -C0495

1шт.

3

KHJ33460

HOSE

6mm ID x 930mm, From Pedal Valve to Drain Block Valve, Start Serial: D0495

1шт.

4

KHJ28880

ELBOW

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6, 7 (Qty 1)

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

8

161841A1

HYD CONNECTOR

ASSY, Incl 7 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

KHJ28580

ELBOW

ASSY, Incl 7 (Qty 1), 11

2шт.

11

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 10

11шт.
