Запчасти Case CX210D NLC (35.360.AF[04]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

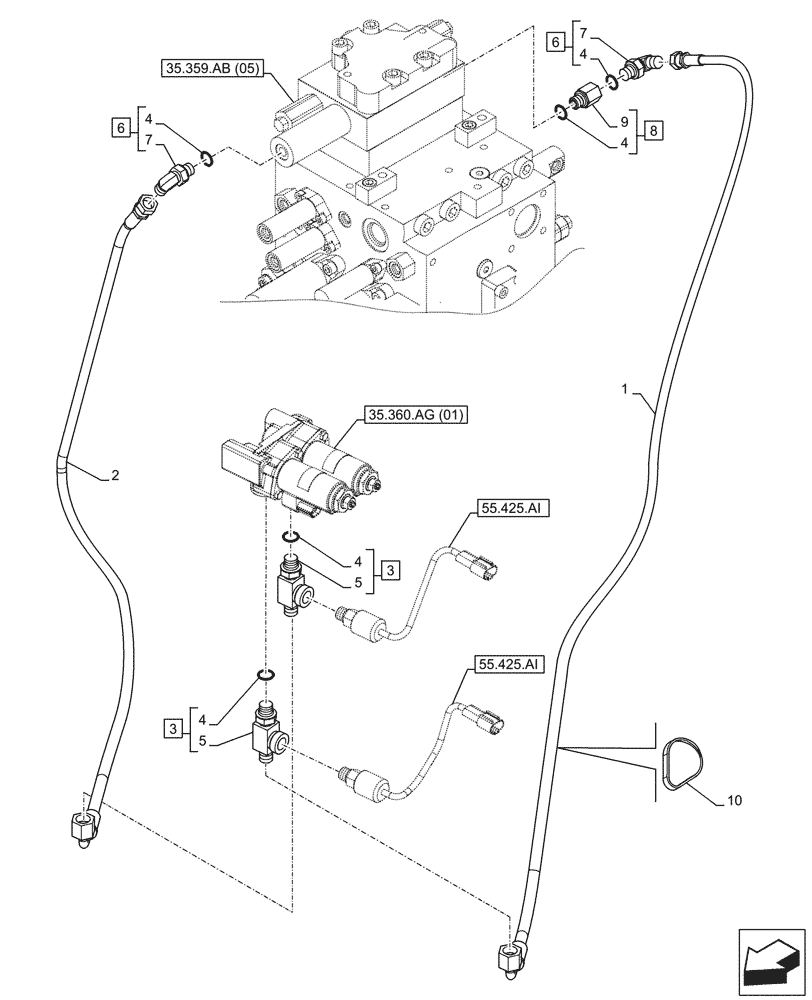

Схема запчастей Case CX210D NLC - (35.360.AF[04]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
6
35.360.ag (01)
3
6
4
1
4
5
4
5
55.425.ai
9
4
7
4
10
7
2
35.359.ab (05)
55.425.ai
3
8

Артикул

Название

Примечание

Количество

1

KHJ17840

HOSE

6mm ID x 3700mm, from Solenoid Valve to Control Valve

1шт.

2

KHJ16300

HOSE

6mm ID x 3650mm, from Solenoid Valve to Control Valve

1шт.

3

167666A1

FITTING

ASSY, Incl G1/4" x G1/4" x G1/4", Incl 4(Qty 1), 5

2шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

5

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 3

2шт.

6

KHJ28580

ELBOW

ASSY, Incl G1/4" x G1/4", Incl 4(Qty 1), 7

2шт.

7

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

2шт.

8

KHJ13640

STUD

ASSY, Incl G1/4", Incl 4(Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Stud, Incl in 8

1шт.

10

150496A1

MOUNTING CLIP

250mm

3шт.

Выбрано товаров: 10
