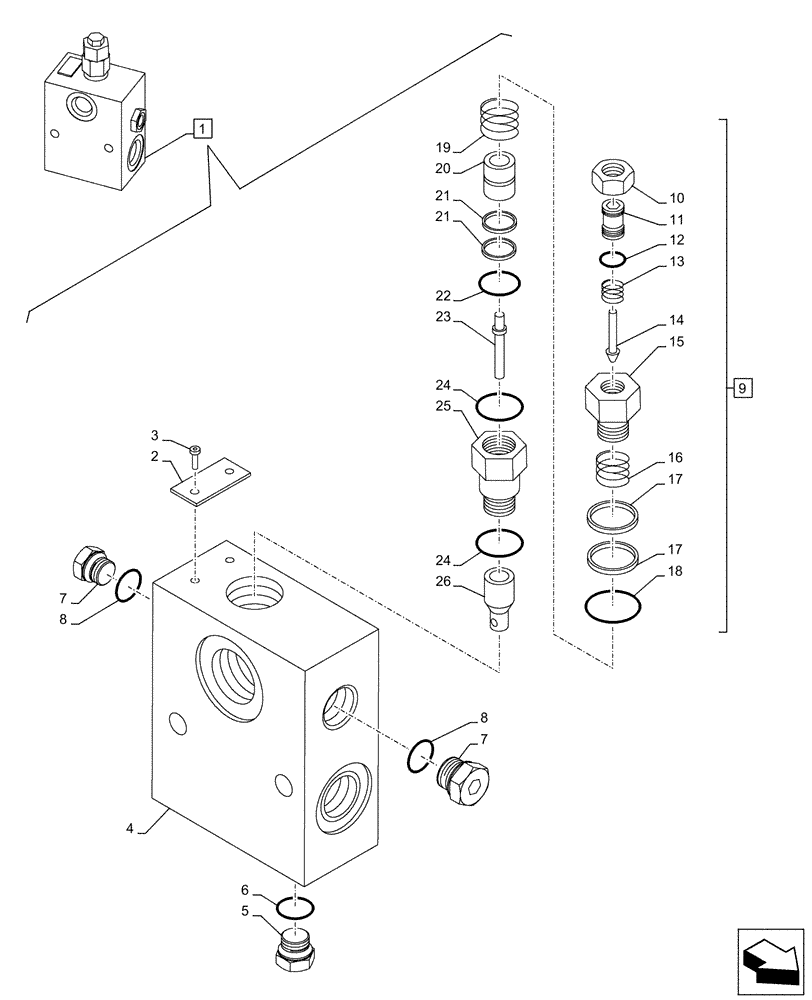

Запчасти Case CX210D NLC (35.360.AE[02]) - VAR - 461561, 461583, 461865, 461867 - SELECTOR VALVE, HAMMER CIRCUIT, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KHJ15050

VALVE PRESSURE RELIE

ASSY, Incl 2 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

Nameplate, Incl in 1

1шт.

3

LA00769

RIVET

2шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

5

155515A1

PLUG

1шт.

6

154475A1

O-RING

1шт.

7

LG005580

STOP LOCK

2шт.

8

154487A1

O-RING

2шт.

9

KHJ15850

VALVE PRESSURE RELIE

ASSY, Incl 10 - 26

1шт.

10

165150A1

NUT

M12 x 1.25

1шт.

11

NSS

NOT SOLD SEPARAT

Screw, Incl in 9

1шт.

12

154463A1

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

Spring, Incl in 9

1шт.

14

NSS

NOT SOLD SEPARAT

Needle, Incl in 9

1шт.

15

NSS

NOT SOLD SEPARAT

Body, Incl in 9

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Incl in 9

1шт.

17

NSS

NOT SOLD SEPARAT

Ring, Incl in 9

2шт.

18

154481A1

O-RING

1шт.

19

NSS

NOT SOLD SEPARAT

Spring, Incl in 9

1шт.

20

NSS

NOT SOLD SEPARAT

Poppet, Incl in 9

1шт.

21

NSS

NOT SOLD SEPARAT

Spring, Incl in 9

2шт.

22

154457A1

O-RING

1шт.

23

NSS

NOT SOLD SEPARAT

Pin, Incl in 9

1шт.

24

155223A1

O-RING

2шт.

25

NSS

NOT SOLD SEPARAT

Body, Incl in 9

1шт.

26

NSS

NOT SOLD SEPARAT

Poppet, Incl in 9

1шт.
