(35.360.AE[01]) - VAR - 461561, 461583, 461865, 461867 - SELECTOR, VALVE, HAMMER CIRCUIT

Запчасти Case CX210D NLC (35.360.AE[01]) - VAR - 461561, 461583, 461865, 461867 - SELECTOR, VALVE, HAMMER CIRCUIT (35) - HYDRAULIC SYSTEMS

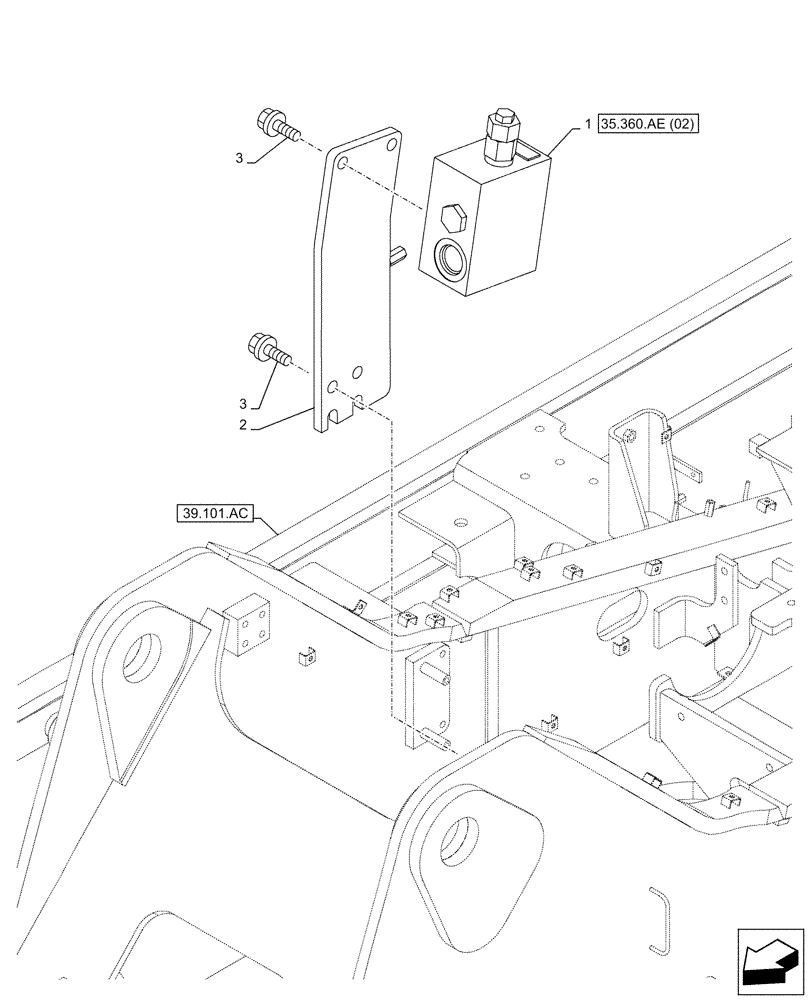

Схема запчастей Case CX210D NLC - (35.360.AE[01]) - VAR - 461561, 461583, 461865, 461867 - SELECTOR, VALVE, HAMMER CIRCUIT (35) - HYDRAULIC SYSTEMS
35.360.ae (02)
1
2
3
3
39.101.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ15050

VALVE PRESSURE RELIE

ASSY

1шт.

2

KRJ11470

SUPPORT

1шт.

3

166352A1

BOLT

M12 x 30mm

6шт.
