Запчасти Case CX210D NLC (35.360.AB[08]) - VAR - 461571, 461871, 461872 - SHEARS, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

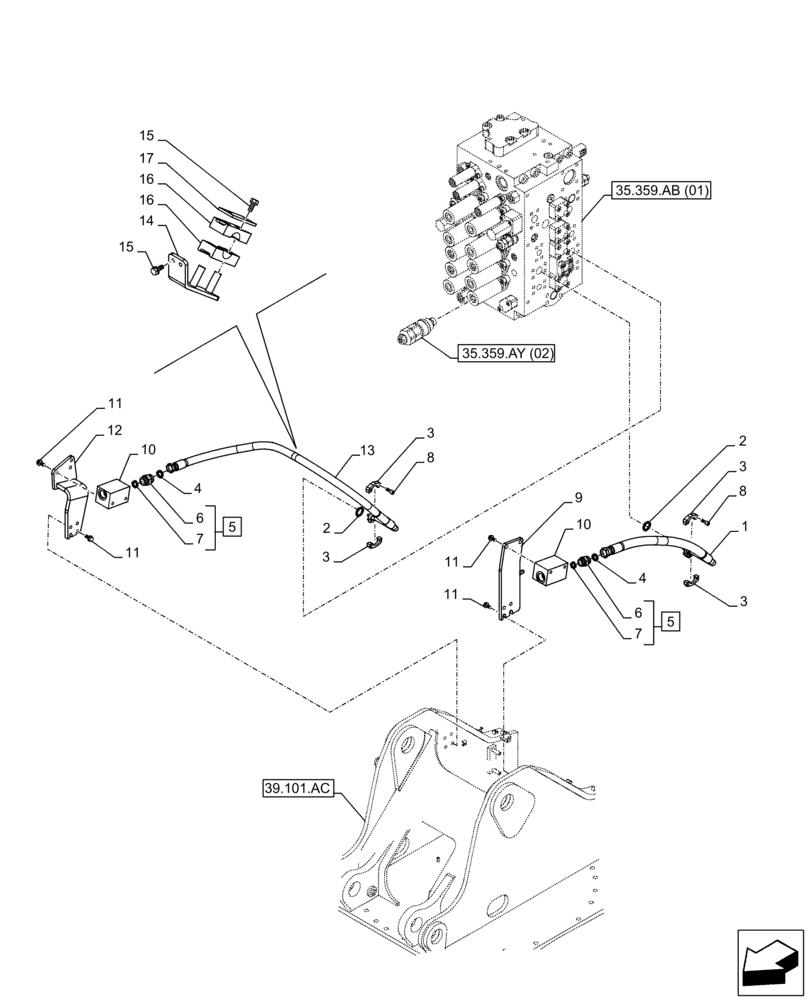

Схема запчастей Case CX210D NLC - (35.360.AB[08]) - VAR - 461571, 461871, 461872 - SHEARS, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
10
10
3
14
2
15
8
3
39.101.ac
15
1
9
4
11
16
2
3
7
3
6
11
5
4
11
7
16
35.359.ay (02)
17
12
13
35.359.ab (01)
5
11
6
8

Артикул

Название

Примечание

Количество

1

KRJ36930

HYDRAULIC HOSE

25mm ID x 870mm

1шт.

2

155211A1

O-RING

2шт.

3

153459A1

FLANGE

4шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

5

KHJ1349

ADAPTER

ASSY, Incl 6 - 7

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

7

154523A1

O-RING

2шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

9

KRJ11470

SUPPORT

1шт.

10

KRJ12170

MANIFOLD VALVE

2шт.

11

166352A1

BOLT

M12 x 30mm

12шт.

12

KRJ16050

SUPPORT

1шт.

13

KRJ37790

HYDRAULIC HOSE

25mm ID x 1600mm

1шт.

14

KBJ19820

BRACKET

1шт.

15

166052A1

BOLT

M10 x 25mm

4шт.

16

KRJ11450

HOSE CLIP

2шт.

17

KRJ10800

PLATE

1шт.

Выбрано товаров: 17
