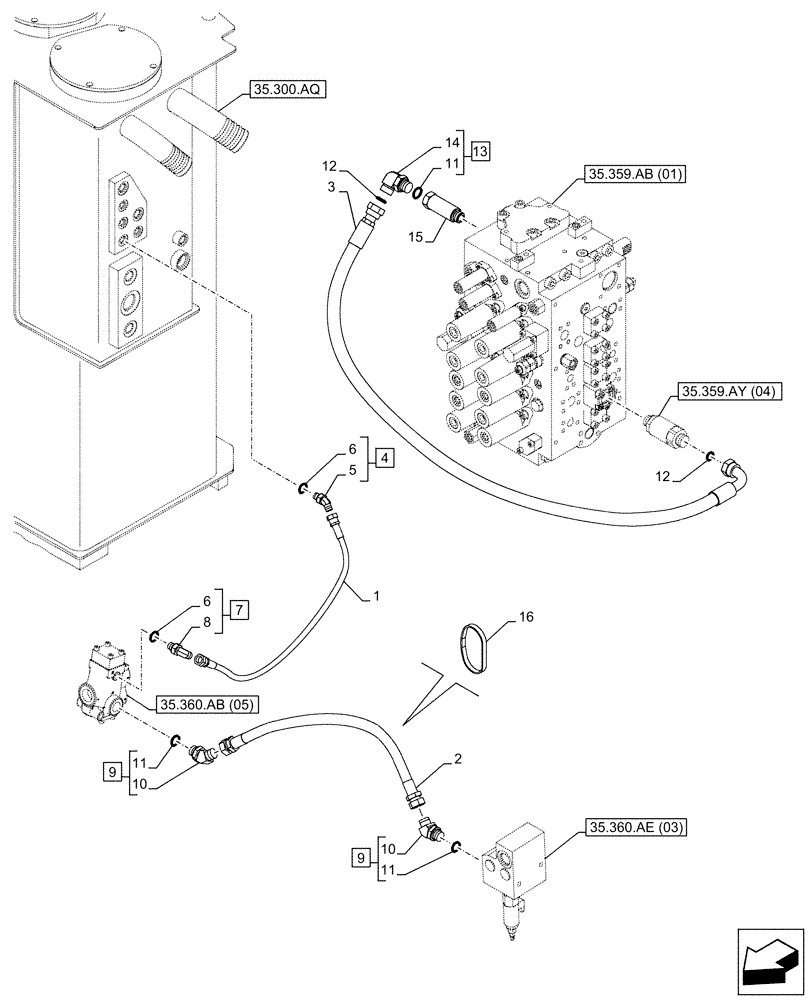

Запчасти Case CX210D NLC (35.360.AB[04]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ33320

HOSE

6mm ID x 800mm, Fron Oil Tank to Direction Valve

1шт.

2

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

Fron Relief Valve to Direction Valve

1шт.

3

KBJ19810

HYDRAULIC HOSE

19mm ID x 1200mm

1шт.

4

KHJ28630

ELBOW

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 4

1шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

KHJ28580

ELBOW

ASSY, Incl 8, 6 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 7

1шт.

9

157586A1

ELBOW

ASSY, Incl 10, 11 (Qty 1)

2шт.

10

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 9

2шт.

11

150542A1

O-RING

3шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

13

KHJ1804

ELBOW

ASSY, Incl 14, 11 (Qty 1)

1шт.

14

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 13

1шт.

15

KHJ26310

STUD

1шт.

16

150496A1

MOUNTING CLIP

250mm

9шт.
