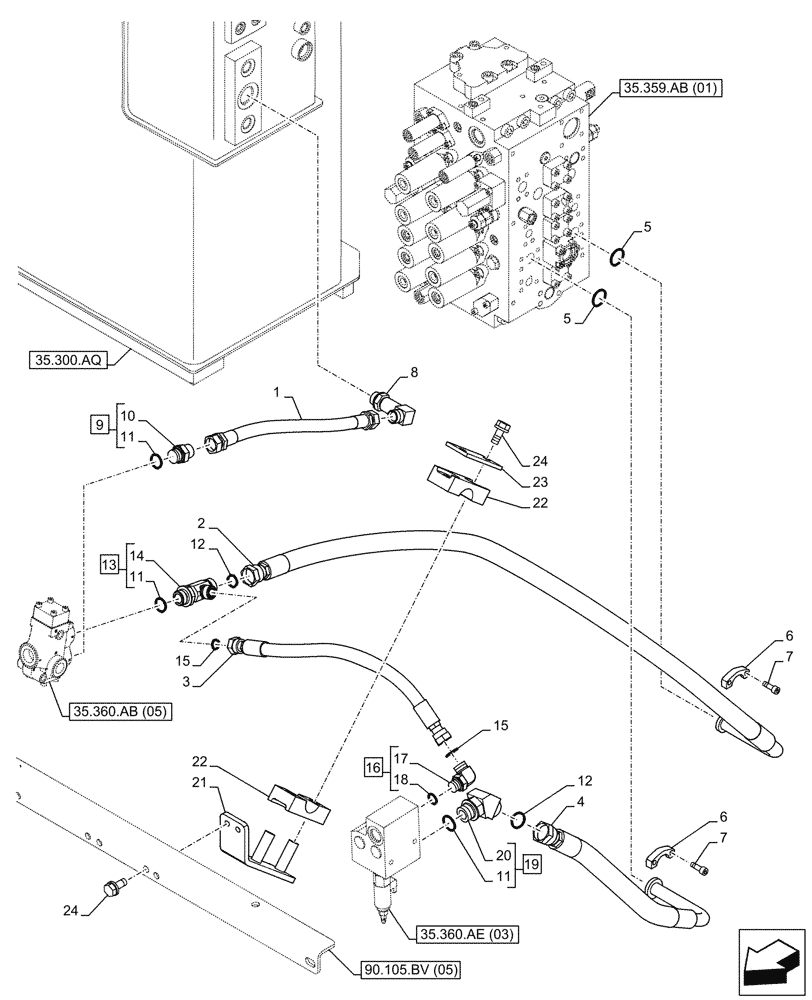

Запчасти Case CX210D NLC (35.360.AB[03]) - VAR - 461869, 461870 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KRJ37590

HYDRAULIC HOSE

25mm ID x 610mm, From Oil Tank to Direction Valve

1шт.

2

KBJ15660

HYDRAULIC HOSE

25mm ID x 1550mm, From Main Control Valve to Direction Valve

1шт.

3

KBJ19790

HYDRAULIC HOSE

19mm ID x 710mm, From Relief Valve to Direction Valve

1шт.

4

KRJ36940

HYDRAULIC HOSE

25mm ID x 670mm, From Relief Valve to Main Control Valve

1шт.

5

162246A1

O-RING

2шт.

6

153459A1

FLANGE

4шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

8

KHJ24380

ELBOW

1шт.

9

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, Incl 10, 11 (Qty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

152211A1

O-RING

3шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

13

KHJ22660

TEE

ASSY, Incl 14, 11 (Qty 1)

1шт.

14

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 13

1шт.

15

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

16

KHJ1804

ELBOW

ASSY, Incl 17, 18 (Qty 1)

1шт.

17

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 16

1шт.

18

150542A1

O-RING

1шт.

19

KHJ11370

ELBOW

ASSY, Incl 20, 11 (Qty 1)

1шт.

20

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 19

1шт.

21

KBJ19820

BRACKET

1шт.

22

KRJ11450

HOSE CLIP

2шт.

23

KRJ10800

PLATE

1шт.

24

166052A1

BOLT

M10 x 25mm

4шт.
