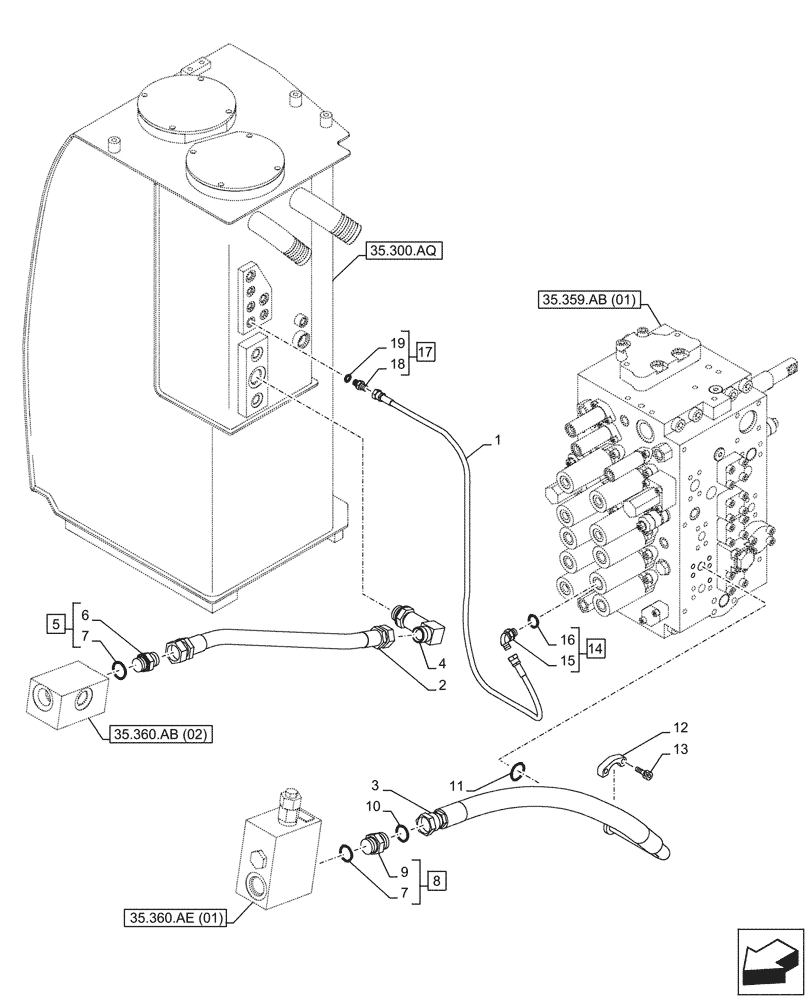

Запчасти Case CX210D NLC (35.360.AB[01]) - VAR - 461561, 461583, 461865, 461867 - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ2054

HOSE

6mm ID x 1200mm, From Oil Tank to Main Control Valve

1шт.

2

KRJ37590

HYDRAULIC HOSE

25mm ID x 610mm, From Oil Tank to Manifold Valve

1шт.

3

KRJ36930

HYDRAULIC HOSE

25mm ID x 870mm, From Oil Tank to Selector Valve

1шт.

4

KHJ24380

ELBOW

1шт.

5

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, Incl 6, 7 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

7

152211A1

O-RING

2шт.

8

KHJ1349

ADAPTER

ASSY, Incl 7 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

11

162246A1

O-RING

1шт.

12

153459A1

FLANGE

2шт.

13

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

14

KHJ28690

ELBOW

ASSY, Incl 15 - 16

1шт.

15

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 14

1шт.

16

150031A1

O-RING,10mm ID x 24mm OD

1шт.

17

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 18 - 19

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 17

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
