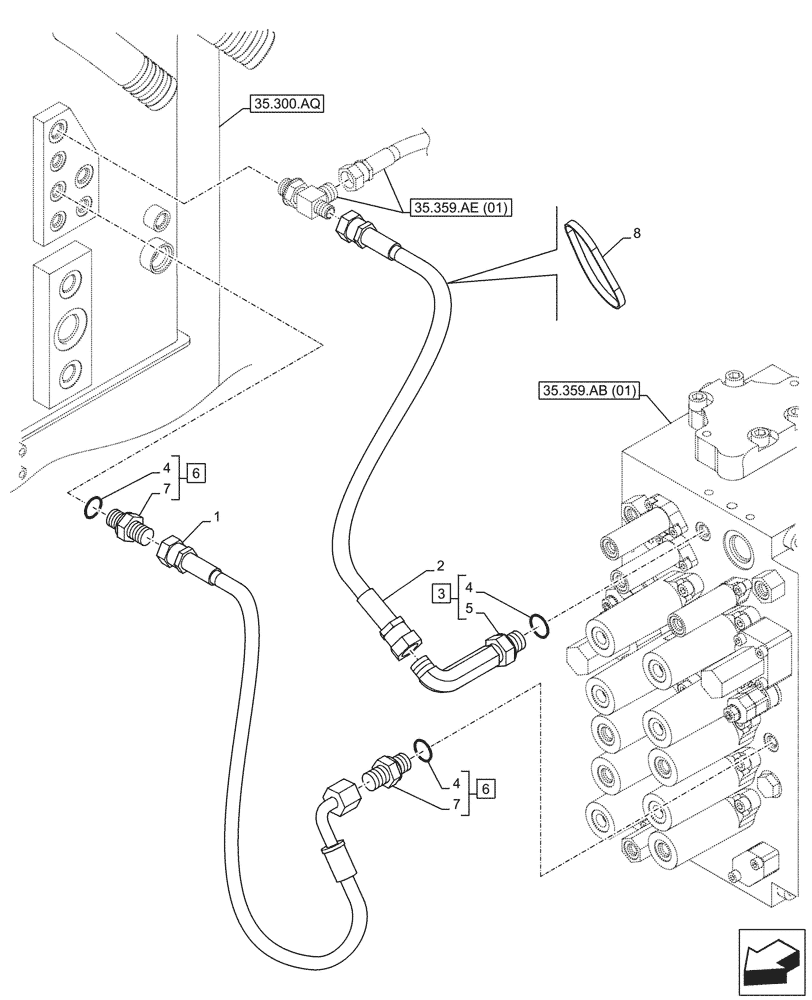

Запчасти Case CX210D NLC (35.359.AE[02]) - CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KHJ2095

HYDRAULIC HOSE

6mm ID x 1300mm, from Control Valve to Sump Tank

1шт.

2

167861A1

HYDRAULIC HOSE,6.30 mm ID x 500.00 mm

500mm, from Control Valve to Sump Tank

1шт.

3

KHJ28810

ELBOW

ASSY, G1/4" x G1/4", Incl 4(Qty 1), 5

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 4(Qty 1), 7

2шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

8

150496A1

MOUNTING CLIP

250mm

1шт.
