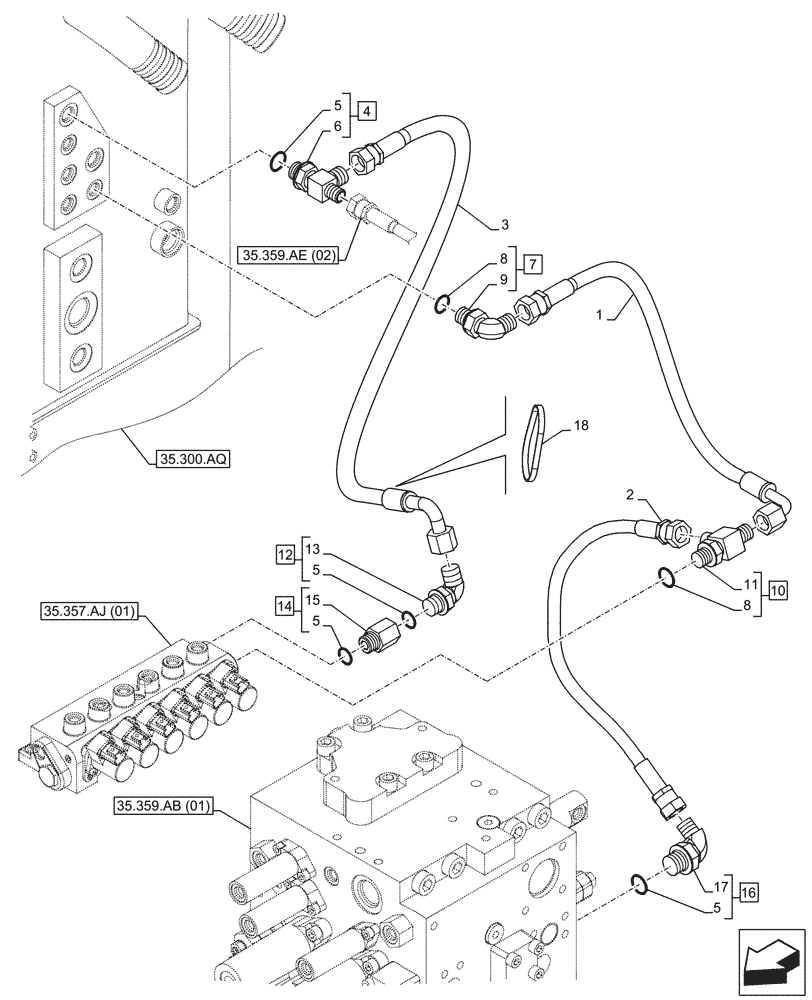

Запчасти Case CX210D NLC (35.359.AE[01]) - CONTROL, VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

KHJ2036

HOSE

6mm ID x 750mm, from Control Valve to Sump Tank

1шт.

2

KHJ2240

HOSE

6mm ID x 450mm

1шт.

3

KHJ17850

HOSE

9mm ID x 850mm, from Solenoid Valve to Sump Tank

1шт.

4

KHJ13900

TEE

ASSY, G3/8" x G1/4" x G3/8", Incl 5(Qty 1), 6

1шт.

5

150031A1

O-RING,10mm ID x 24mm OD

4шт.

6

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 4

1шт.

7

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 8(Qty 1), 9

1шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 7

1шт.

10

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 8(Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 10

1шт.

12

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 5(Qty 1), 13

1шт.

13

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 12

1шт.

14

KHJ13790

STUD

ASSY, G3/8" x G3/8", Incl 5(Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Stud, Incl in 14

1шт.

16

KHJ28690

ELBOW

ASSY, G3/8" x G1/4", Incl 5(Qty 1), 17

1шт.

17

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 16

1шт.

18

150496A1

MOUNTING CLIP

250mm

1шт.
