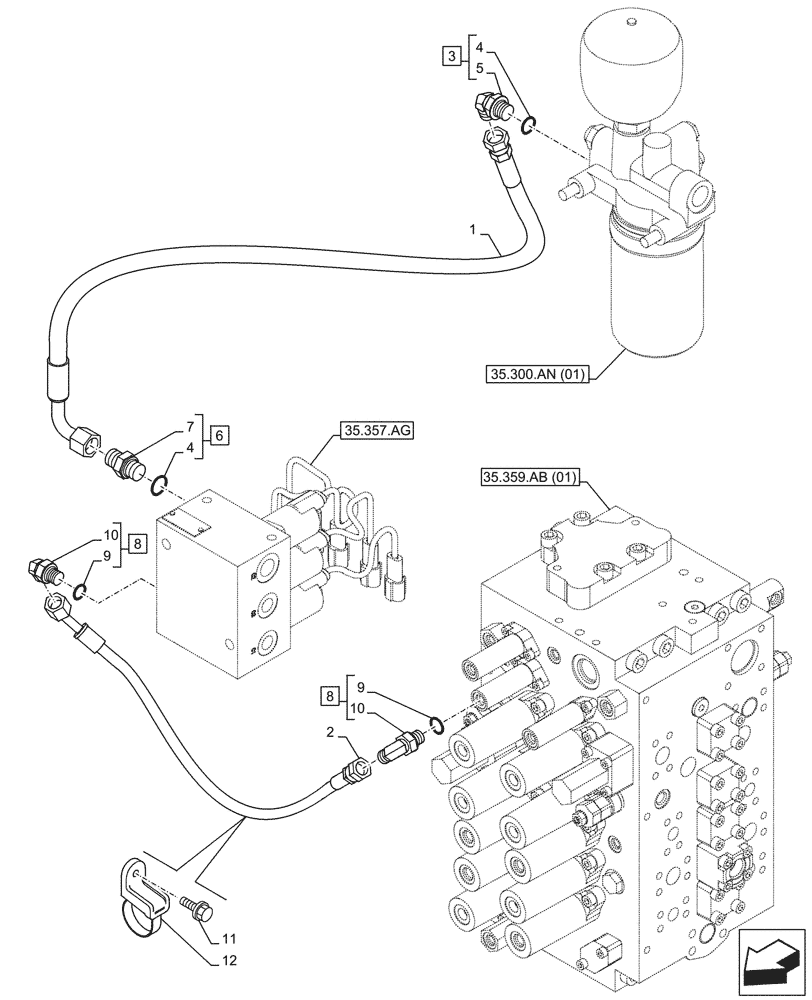

Запчасти Case CX210D NLC (35.357.AR[01]) - PILOT VALVE, CONTROL, VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

KHJ34330

HYDRAULIC HOSE

9mm ID x 330mm, from Accumulator to Solenoid Valve

1шт.

2

KHJ34160

HYDRAULIC HOSE

6mm ID x 1900mm, from Solenoid Valve to Control Valve

1шт.

3

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 4(Qty 1), 5

1шт.

4

150031A1

O-RING,10mm ID x 24mm OD

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 4(Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 9(Qty 1), 10

2шт.

9

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

2шт.

11

KHJ2298

BOLT,Spcl

M10 x 25mm

2шт.

12

KHR2582

CLAMP

M10

2шт.
