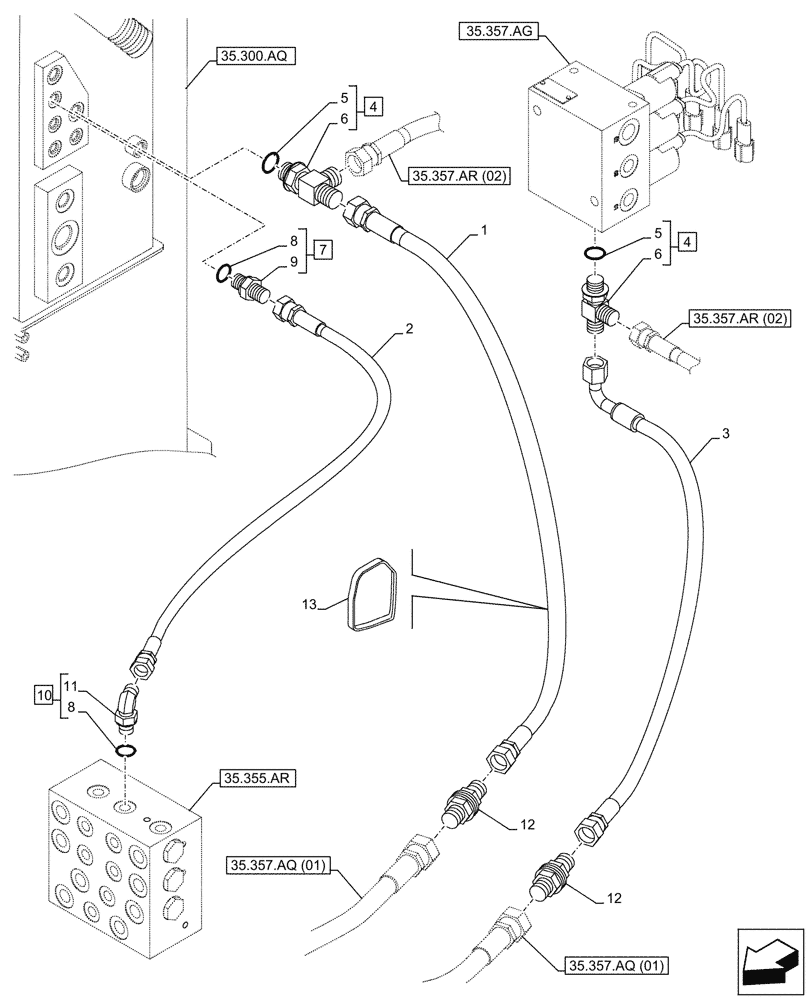

Запчасти Case CX210D NLC (35.357.AQ[02]) - PILOT VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

KHJ2625

HOSE

9mm ID x 2100mm, from Sump Tank to Hydraulic Valve

1шт.

2

KHJ2068

HOSE

6mm ID x 2250mm, from Sump Tank to Cushion Valve

1шт.

3

KHJ2107

HOSE,9.5mm ID x 2400mm L

9mm ID x 2400mm, from Solneoid Valve to Hydraulic Valve

1шт.

4

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, G3/8" x G3/8" x G3/8", Incl 5, 6

2шт.

5

150031A1

O-RING,10mm ID x 24mm OD

2шт.

6

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 4

2шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 8 (Qty 1), 9

1шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

10

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 8 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 10

1шт.

12

162826A1

ADAPTER

G3/8"

2шт.

13

150498A1

MOUNTING CLIP

300mm

2шт.
