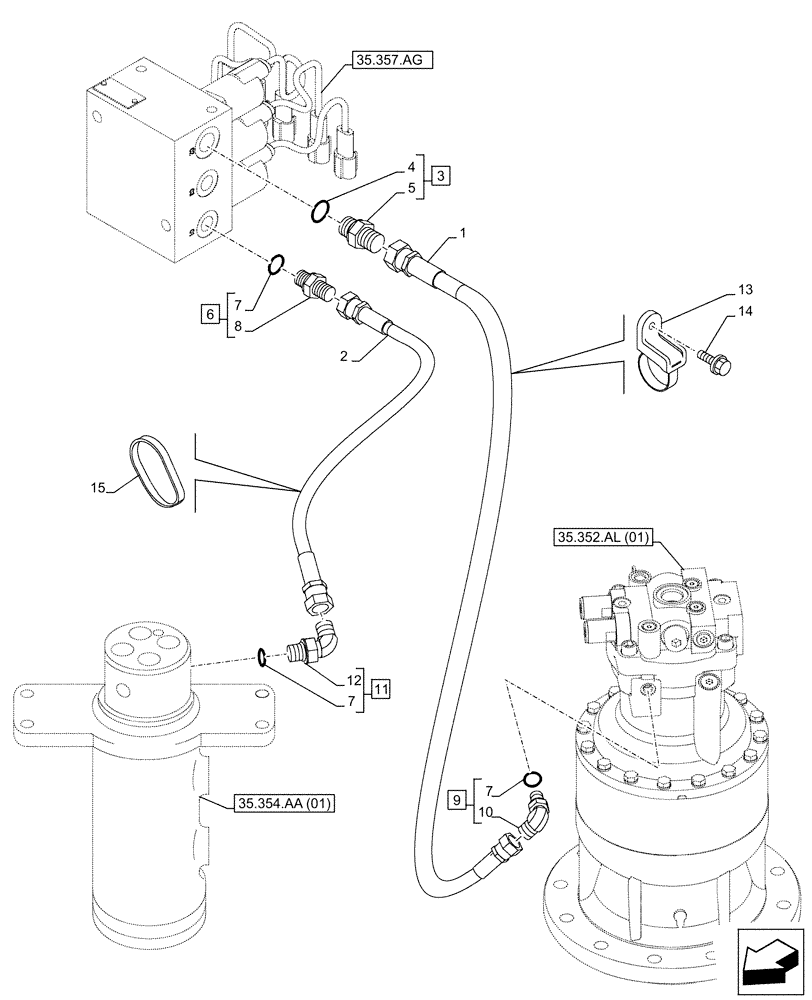

Запчасти Case CX210D NLC (35.357.AO[06]) - MAIN, SOLENOID, VALVE, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

1

KHJ2101

HYDRAULIC HOSE

9mm ID x 2450mm, from Pilot Valve to Swing Reduction Unit

1шт.

2

KHJ2071

HOSE

6mm ID x 2450mm, from Pilot Valve to Hydraulic Swivel

1шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 4, 5

1шт.

4

150031A1

O-RING,10mm ID x 24mm OD

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 7 (Qty 1), 8

1шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 7 (Qty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 9

1шт.

11

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 7 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

13

KHR2581

CLAMP

M8

5шт.

14

KHJ1215

BOLT,Spcl

M8 x 25mm

5шт.

15

150496A1

MOUNTING CLIP

250mm

1шт.
