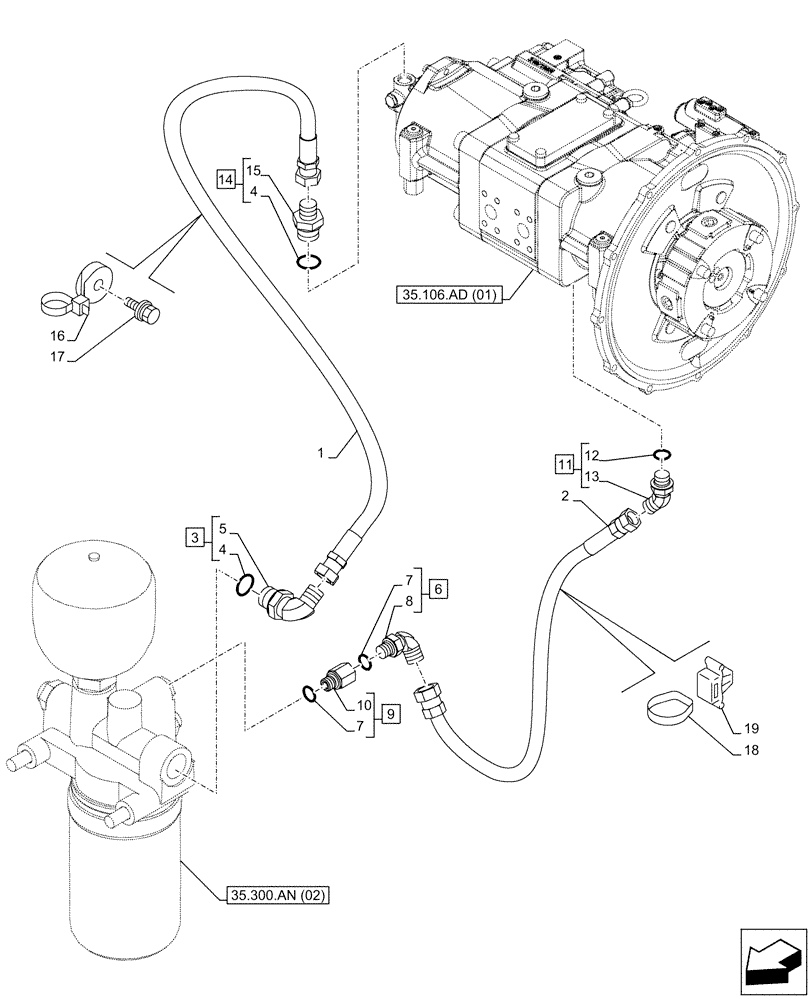

Запчасти Case CX210D NLC (35.357.AD) - PILOT VALVE, OIL LINE (35) - HYDRAULIC SYSTEMS

1

KHJ36230

HYDRAULIC HOSE

9mm ID x 580mm, from Accumulator to Hydraulic Pump

1шт.

2

KHJ34320

HYDRAULIC HOSE

9mm ID x 670mm, from Accumulator to Hydraulic Pump

1шт.

3

KHJ29500

ELBOW

ASSY, Incl 4 (Qty 1), 5

1шт.

4

150539A1

O-RING

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 7 (Qty 1), 8

1шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

9

KHJ13640

STUD

ASSY, G1/4", Incl 7 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

KHJ28640

ELBOW

ASSY, G3/8" x G3/8", Incl 12, 13

1шт.

12

150031A1

O-RING,10mm ID x 24mm OD

1шт.

13

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 11

1шт.

14

161084A1

ADAPTER

ASSY, Incl 4 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

1шт.

16

KHR2584

CLAMP

M8

1шт.

17

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

18

150496A1

MOUNTING CLIP

250mm

2шт.

19

KHR10220

MOUNTING CLIP

2шт.
