(35.352.AL[01]) - SWING REDUCTION UNIT

Запчасти Case CX210D NLC (35.352.AL[01]) - SWING REDUCTION UNIT (35) - HYDRAULIC SYSTEMS

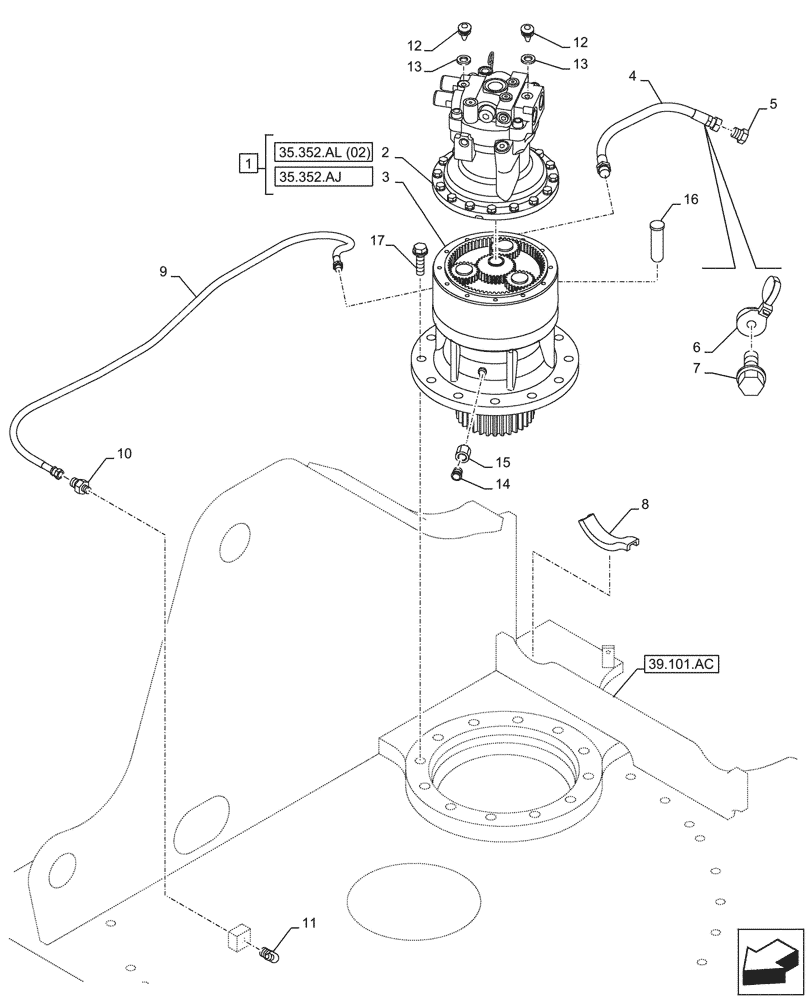

Схема запчастей Case CX210D NLC - (35.352.AL[01]) - SWING REDUCTION UNIT (35) - HYDRAULIC SYSTEMS
35.352.al (02)
16
13
1
8
5
10
11
14
6
3
4
9
15
7
12
13
17
12
2
35.352.aj
39.101.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRC10220

MOTO-REDUCTION GEAR

ASSY, Incl 2, 3

1шт.

See also figure 35.352.AL(02), 35.352.AL(03), 35.352.AJ, 35.352.AO

1шт.

2

KRC10260

HYDRAULIC MOTOR

1шт.

3

LN001820

REDUCER

1шт.

4

KRJ16100

HYDRAULIC HOSE,12.70 mm ID x 470.00 mm

1шт.

5

KHP0578

PLUG

G1/2"

1шт.

6

KHR2584

CLAMP

M8

1шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

8

KAJ4772

SEAL PROTECTION

1шт.

9

KHJ14930

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

6mm ID x 1400mm

1шт.

10

KRJ4050

ADAPTER

1шт.

11

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

12

KHV12270

SCREW,M12 x 1

2шт.

13

150811A1

WASHER

2шт.

14

KRC10710

VALVE

1шт.

15

KRC10720

FITTING

1шт.

16

158955A1

HEADED PIN

, Serial Range: -C0434

1шт.

16

KRC11720

PIN

, Start Serial: D0434

1шт.

17

166354A1

BOLT,Sems, M20 x 75mm

11шт.
