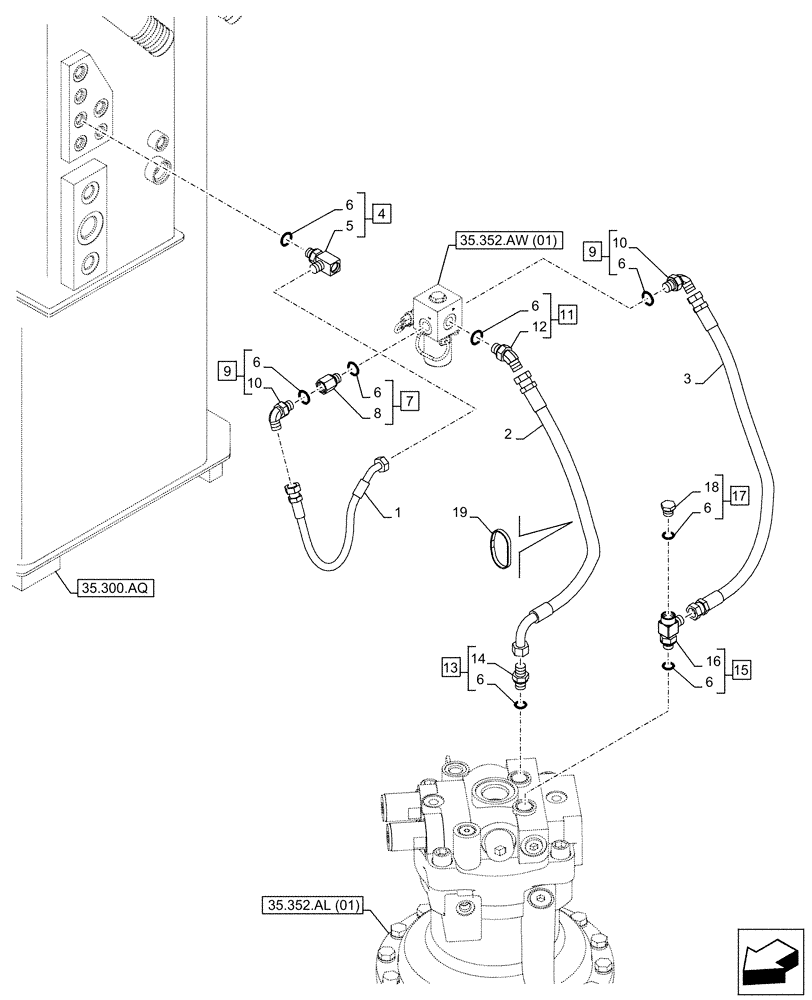

Запчасти Case CX210D NLC (35.352.AI[03]) - VAR - 461568 - MOTO-REDUCTION GEAR, LINES, FREE SWING (35) - HYDRAULIC SYSTEMS

1

KHJ11180

HYDRAULIC HOSE,6.35 mm ID x 430.00 mm

6mm ID x 350mm, From Oil Tank to Solenoid Valve

1шт.

2

KBJ16710

HYDRAULIC HOSE

6mm ID x 570mm, From Swing Motor to Solenoid Valve

1шт.

3

KBJ22090

HYDRAULIC HOSE

06mm ID x 680mm, From Swing Motor to Solenoid Valve

1шт.

4

KHJ2773

TEE

ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 4

1шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

7

KHJ13640

STUD

ASSY, Incl 6 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

KHJ28580

ELBOW

ASSY, Incl 6 (Qty 1), 10

2шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 9

2шт.

11

KHJ28630

ELBOW

ASSY, Incl 6 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 11

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6 (Qty 1), 14

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

1шт.

15

KHJ11640

ORIFICE

ASSY, Incl 6 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

17

159002A1

PLUG

ASSY, Incl 6 (Qty 1), 18

1шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 17

1шт.

19

150496A1

MOUNTING CLIP

250mm

2шт.
