Запчасти Case CX210D NLC (35.352.AI[01]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

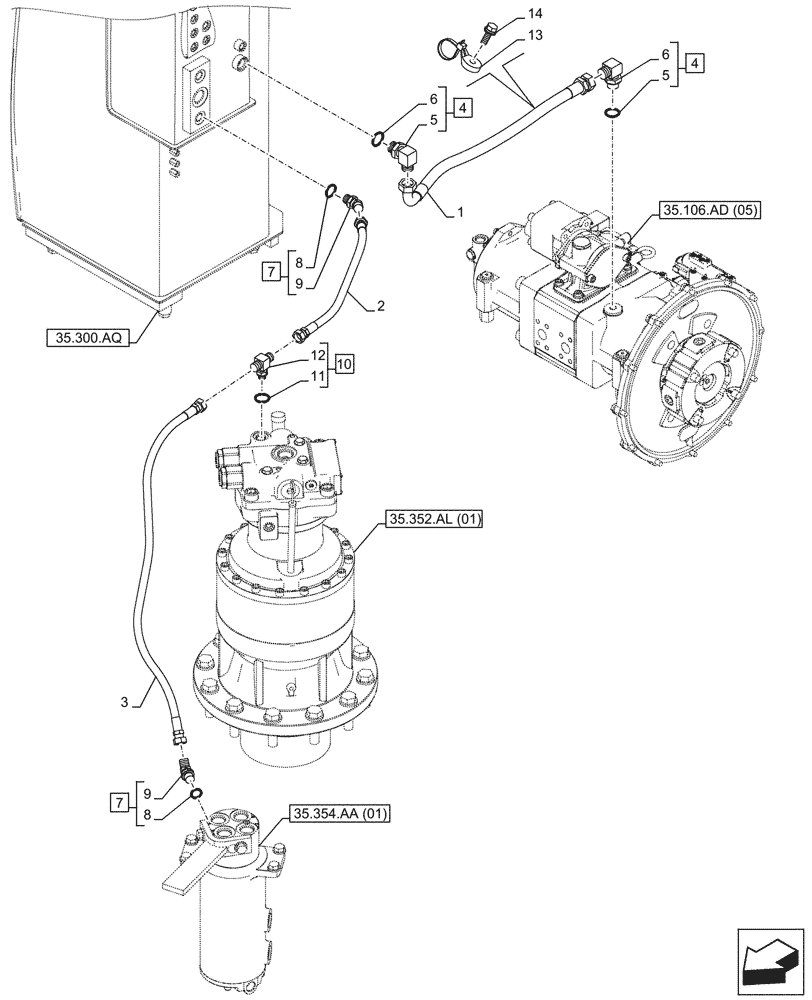

Схема запчастей Case CX210D NLC - (35.352.AI[01]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
35.106.ad (05)
2
13
5
5
4
12
9
9
7
11
8
6
7
1
10
3
14
4
8
6
35.352.al (01)
35.300.aq
35.354.aa (01)

Артикул

Название

Примечание

Количество

1

KBJ11630

HOSE ASSY.

19mm ID x 750mm

1шт.

2

KHJ30290

HYDRAULIC HOSE

520mm

1шт.

3

KTJ2048

HYDRAULIC HOSE,12.70 mm ID x 950.00 mm

12mm ID 950mm

1шт.

4

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G1/4" x G1/4", Incl 5, 6

2шт.

5

150542A1

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

2шт.

7

KHJ28650

ELBOW

ASSY, G1/2" x G1/2", Incl 8, 9

2шт.

8

150539A1

O-RING

2шт.

9

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 7

2шт.

10

KHJ1157

TEE

ASSY, Incl 11, 12

1шт.

11

150031A1

O-RING,10mm ID x 24mm OD

1шт.

12

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

1шт.

13

KHR2584

CLAMP

M8

1шт.

14

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

Выбрано товаров: 14
