(35.300.BE) - HYDRAULIC OIL RESERVOIR, BREATHER

Запчасти Case CX210D NLC (35.300.BE) - HYDRAULIC OIL RESERVOIR, BREATHER (35) - HYDRAULIC SYSTEMS

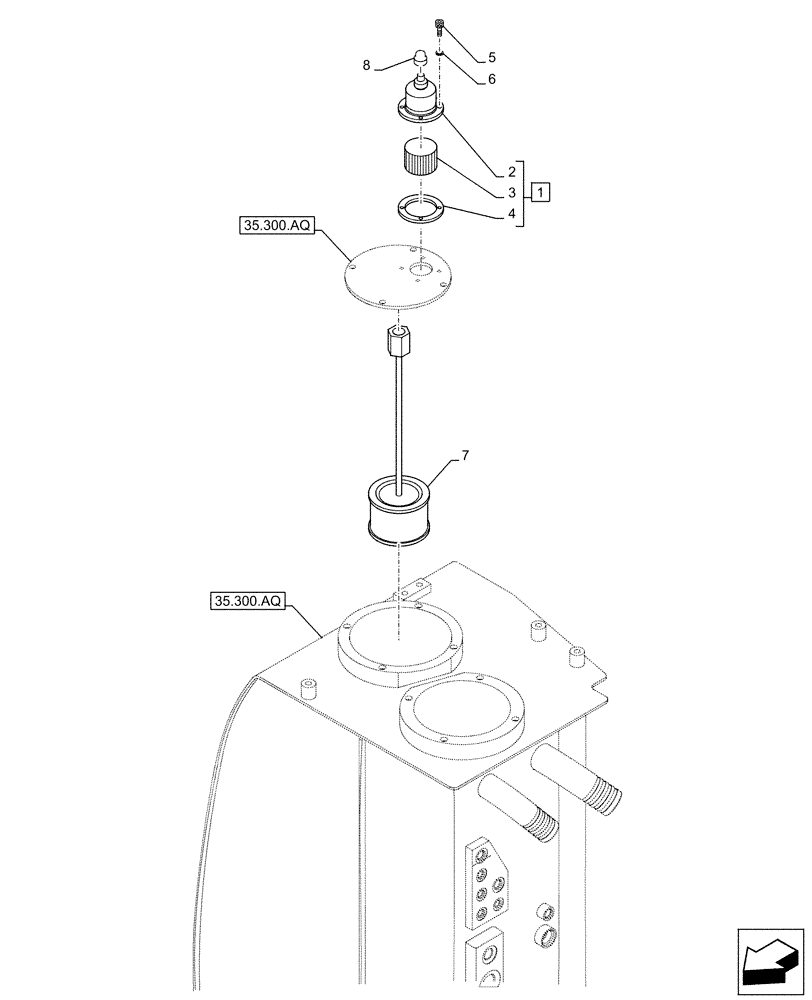

Схема запчастей Case CX210D NLC - (35.300.BE) - HYDRAULIC OIL RESERVOIR, BREATHER (35) - HYDRAULIC SYSTEMS
35.300.aq
5
2
6
8
1
7
3
4
35.300.aq
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ22142

BREATHER

ASSY, 2 - 4, 8

1шт.

2

NSS

NOT SOLD SEPARAT

Breather air, Incl in 1

1шт.

3

KHJ22152

HYDRAULIC OIL FILTER

Reservoir Breather

1шт.

4

159703A1

GASKET

1шт.

5

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

M6 x 16mm

4шт.

6

892-11006

LOCK WASHER,M6

M6

4шт.

7

KRJ34901

FILTER STRAINER

Inlet

1шт.

8

KHJ1492

CAP

1шт.
