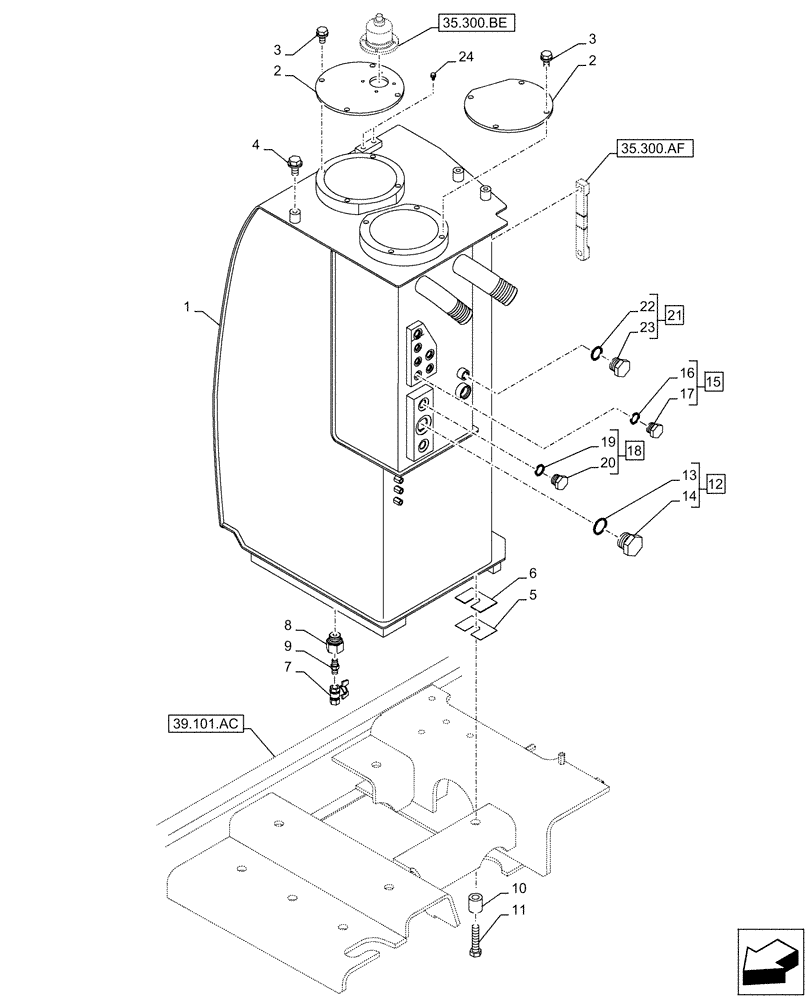

Запчасти Case CX210D NLC (35.300.AQ) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

KRJ37341

RESERVOIR, HYDRAULIC

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

2шт.

3

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20mm

8шт.

4

105R012Y025R

BOLT

M12 x 25mm

1шт.

5

150166A1

SHIM

1шт.

6

150479A1

SHIM

1шт.

7

158923A1

DRAIN VALVE

1шт.

8

KHJ16920

STUD

1шт.

9

150847A1

HYD CONNECTOR

1шт.

10

153357A1

SPACER

4шт.

11

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

M16 x 70mm

4шт.

12

162659A1

PLUG

ASSY, Incl 13, 14

1шт.

13

152211A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 12

1шт.

15

159002A1

PLUG

ASSY, G1/4", Incl 16, 17

1шт.

16

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

1шт.

18

159085A1

PLUG

ASSY, G1/2", Incl 19, 20

1шт.

19

150539A1

O-RING

1шт.

20

NSS

NOT SOLD SEPARAT

Plug, Incl in 19

1шт.

21

153105A1

PLUG

ASSY, G3/8", Incl 22, 23

1шт.

22

150031A1

O-RING,10mm ID x 24mm OD

1шт.

23

NSS

NOT SOLD SEPARAT

Plug, Incl in 21

1шт.

24

166346A1

BOLT,Sems, M10

2шт.
