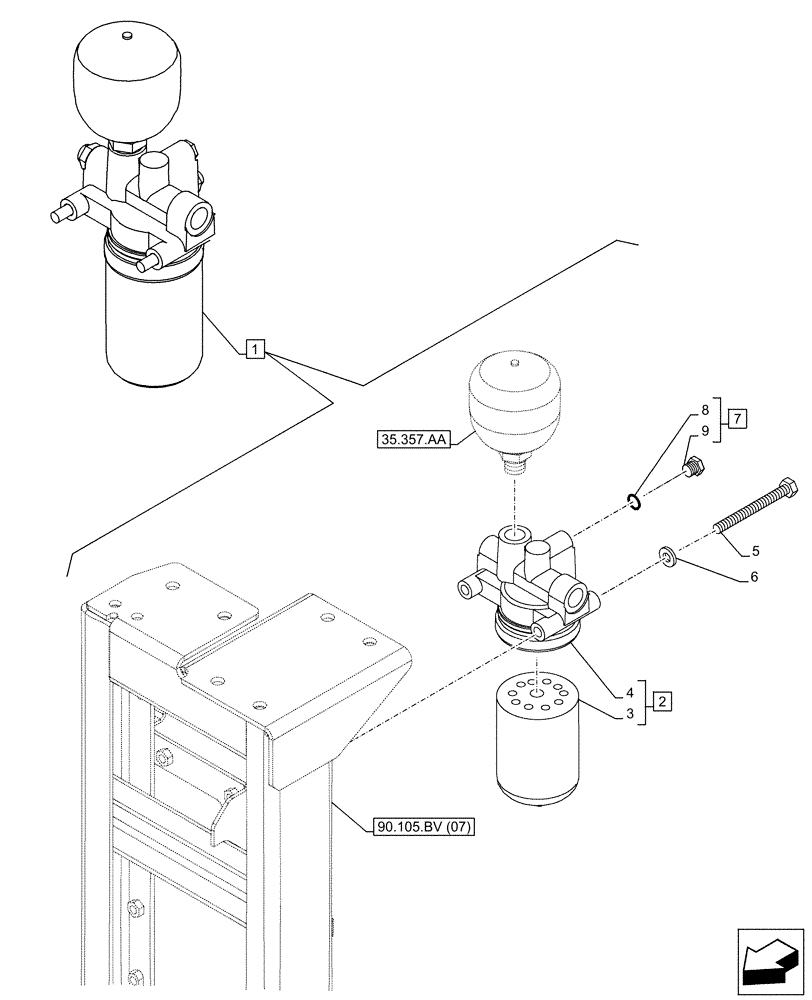

Запчасти Case CX210D NLC (35.300.AN[01]) - HYDRAULIC SYSTEM, OIL FILTER (35) - HYDRAULIC SYSTEMS

1

KHJ17711

ACCUMULATOR

ASSY, Incl 2 - 4, Serial Range: -C0473

1шт.

See also Figure 35.357.AA

1шт.

1

KHJ17710

FILTER ASSY

ASSY, Incl 2 - 4, Start Serial: D0473

1шт.

See also Figure 35.357.AA

1шт.

2

KHJ17720

FILTER HEAD

ASSY, Incl 3, 4

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

1шт.

4

NSS

NOT SOLD SEPARAT

Manifold oil filter, Incl in 2

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

M10 x 100mm

2шт.

6

150409A1

WASHER

M10

2шт.

7

159002A1

PLUG

ASSY, G1/4", Incl 8, 9

1шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 7

1шт.
