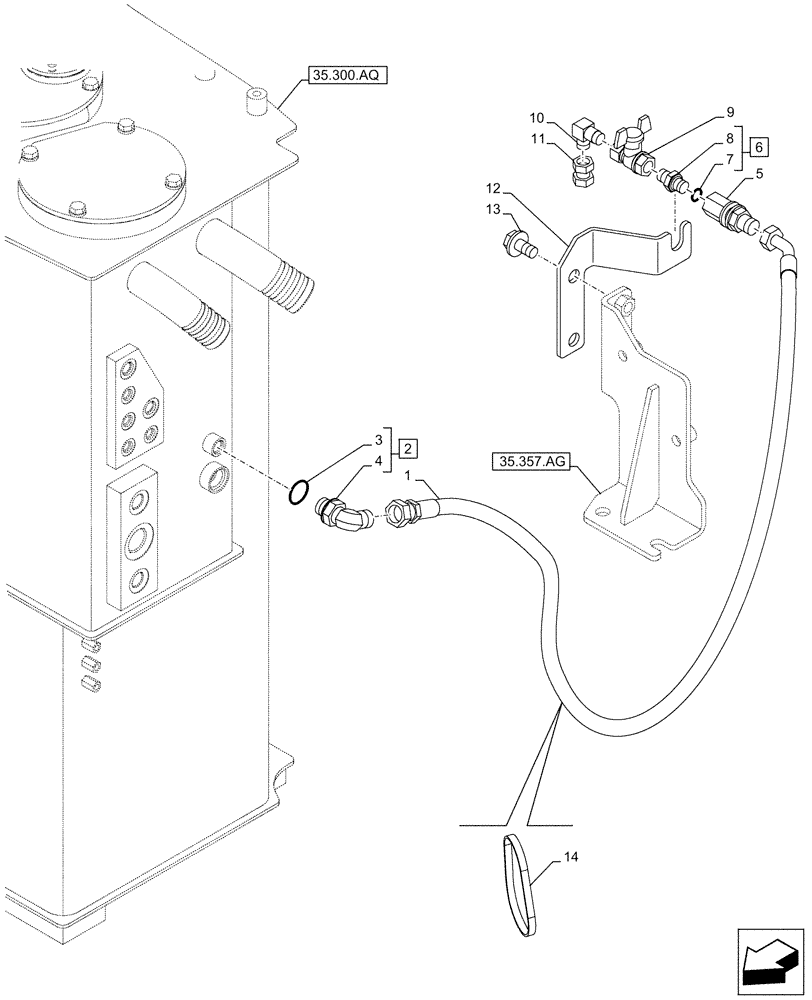

Запчасти Case CX210D NLC (35.300.AD) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

KHJ36190

HYDRAULIC HOSE

9mm ID x 1350mm

1шт.

2

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 3, 4

1шт.

3

150031A1

O-RING,10mm ID x 24mm OD

1шт.

4

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 2

1шт.

5

KHJ0569

ADAPTER

G1/4" x G3/8"

1шт.

6

152899A1

HYD CONNECTOR

ASSY, Incl 7, 8

1шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

158923A1

DRAIN VALVE

1шт.

10

153596A1

ADAPTER

1шт.

11

158842A1

PLUG

G1/4"

1шт.

12

KRJ40040

BRACKET

1шт.

13

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

1шт.

14

150496A1

MOUNTING CLIP

250mm

1шт.
