Запчасти Case CX210D LC LR (35.106.AD[06]) - VAR - 461863, 461864 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

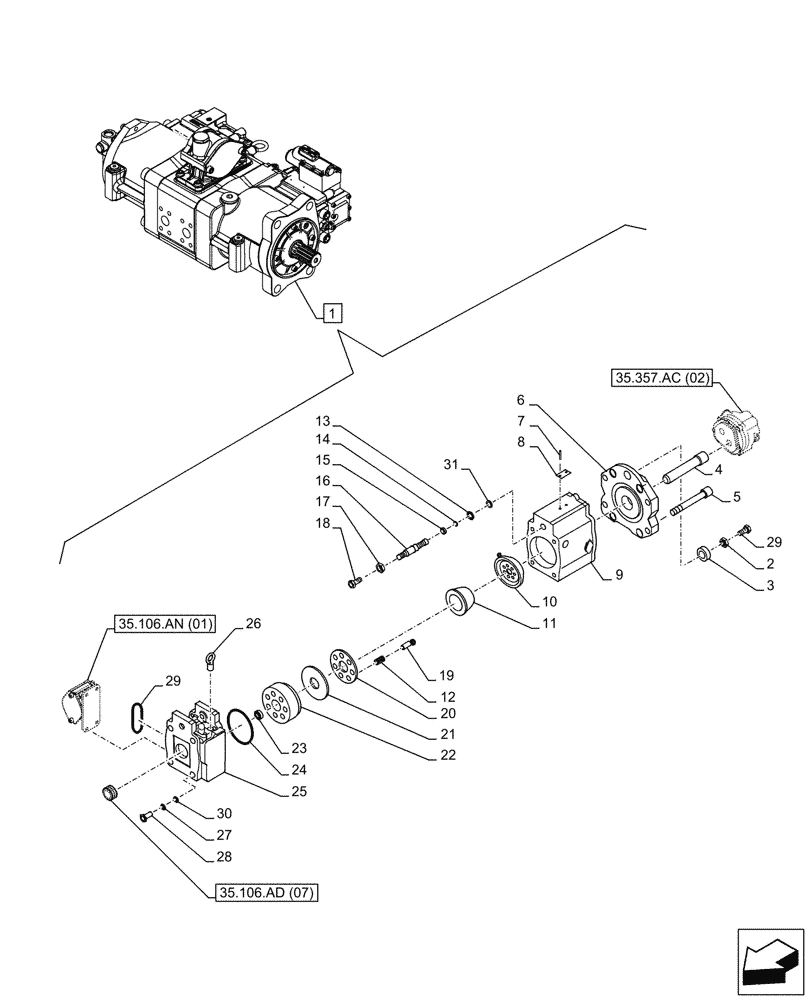

Схема запчастей Case CX210D LC LR - (35.106.AD[06]) - VAR - 461863, 461864 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.357.ac (02)
29
24
16
21
15
20
14
25
12
18
2
26
11
22
29
7
9
19
31
30
27
6
8
17
28
5
23
10
1
13
3
4
35.106.an (01)
35.106.ad (07)

Артикул

Название

Примечание

Количество

1

KRJ35051

PUMP

ASSY, Incl 2 - 31

1шт.

See also Figure 35.106.AD (05), 35.106.AD (07), 35.106.AD (08), 35.357.AC (02), 35.104.AA(01), 35.104.AA(02), 35.106.AN(01), 35.106.AN (02)

1шт.

2

LA016770

NUT

2шт.

3

LW007280

COVER

2шт.

4

LB017110

DRIVE SHAFT

1шт.

5

167078A1

BOLT,M8 x 40mm, Cl 12.9

4шт.

6

LW007260

BODY

1шт.

7

LA00027

RIVET

2шт.

8

NSS

NOT SOLD SEPARAT

Nameplate, Incl in 1

1шт.

9

LW007270

BODY

Case, Incl in 1

1шт.

10

LR023300

PLATE

2шт.

11

LB017140

BUSHING

2шт.

12

LG00062

SPRING

9шт.

13

LE025810

RING

2шт.

14

LE01176

O-RING

2шт.

15

160115A1

STOP

2шт.

16

LJ022410

PISTON

2шт.

17

LA016780

NUT

2шт.

18

160296A1

SET SCREW

2шт.

19

LJ022370

PISTON

2шт.

20

LR023320

PLATE

2шт.

21

LR023310

PLATE

2шт.

22

LJ022390

BLOCK

1шт.

23

LB00645

BEARING, ROLLER, CYL

2шт.

24

LE024770

O-RING

2шт.

25

LJ022420

BLOCK

1шт.

26

LA016830

EYEBOLT

2шт.

27

LE013410

O-RING

14шт.

28

LJ022400

VALVE

4шт.

29

160295A1

SET SCREW

2шт.

30

LE022170

SEAL

10шт.

31

160116A1

STOP

1шт.

Выбрано товаров: 32
