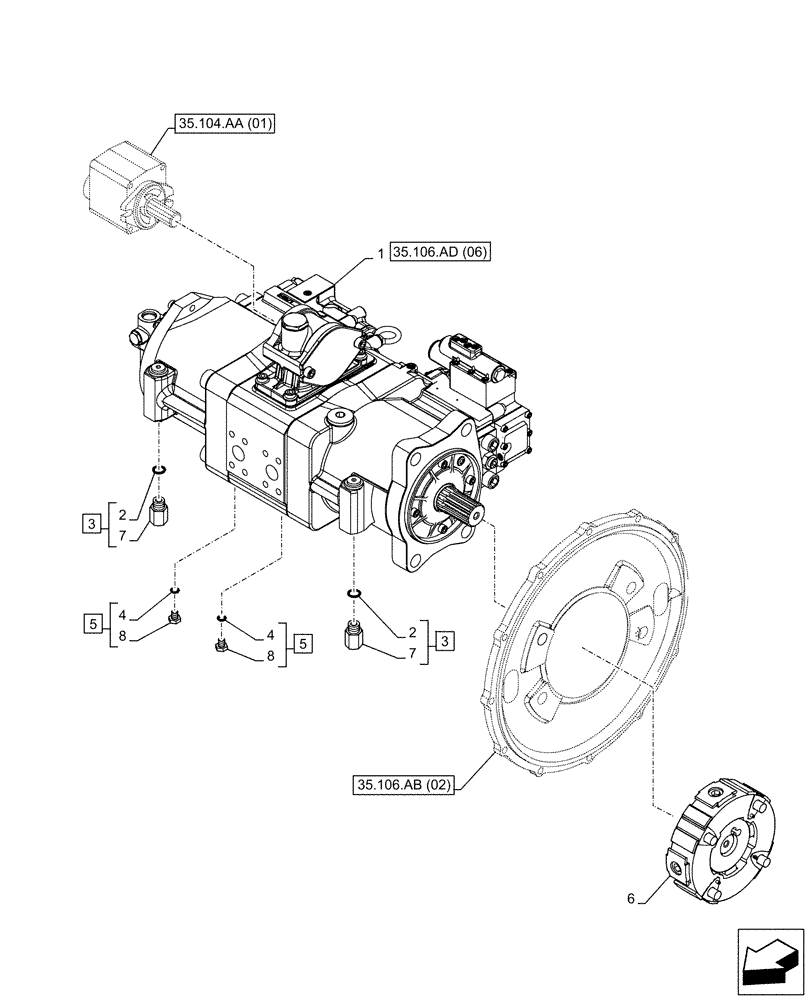

Запчасти Case CX210D LC LR (35.106.AD[05]) - VAR - 461863, 461864 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KRJ35051

PUMP

ASSY, Incl 2 - 8

1шт.

See also Figure 35.106.AD (06), 35.106.AD (07), 35.106.AD (08), 35.357.AC (02), 35.104.AA(01), 35.104.AA(02), 35.106.AN(01), 35.106.AN(02)

1шт.

2

154475A1

O-RING

2шт.

3

KHJ18190

STUD

ASSY, Incl 2, 7

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

159002A1

PLUG

ASSY, Incl 4, 8

2шт.

6

KRJ29521

HYDRAULIC PUMP

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

2шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

2шт.
