(35.104.AA[01]) - VAR - 461863, 461864 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D LC LR (35.104.AA[01]) - VAR - 461863, 461864 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

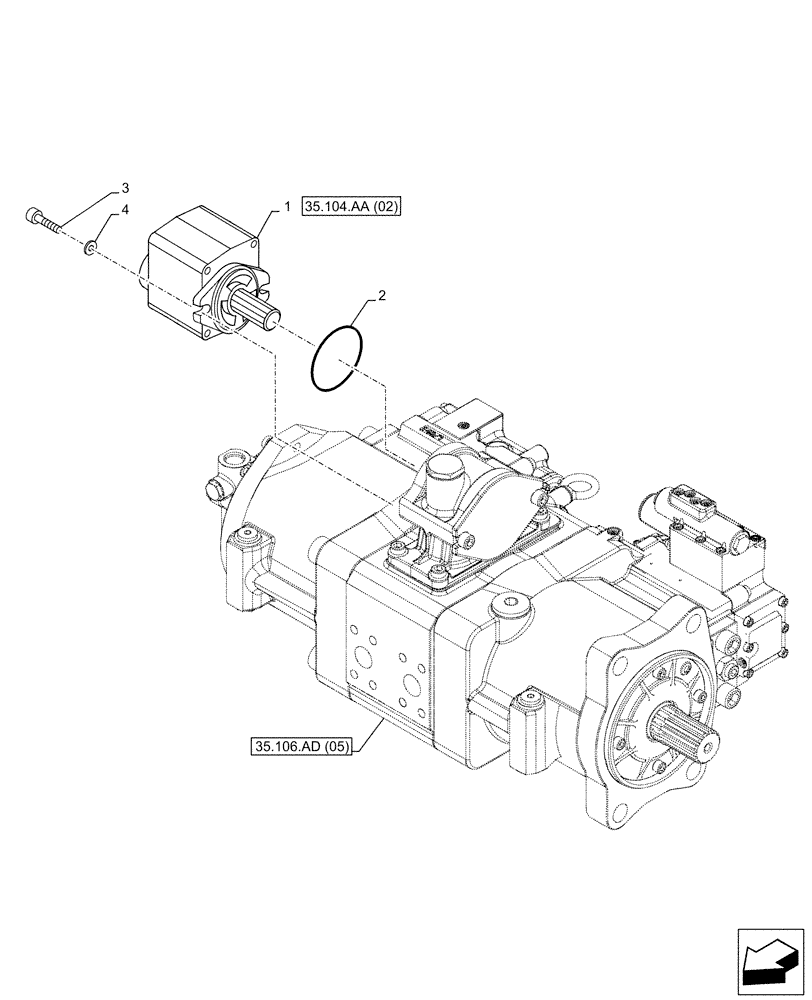

Схема запчастей Case CX210D LC LR - (35.104.AA[01]) - VAR - 461863, 461864 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.104.aa (02)
3
2
4
1
35.106.ad (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ34770

PUMP

ASSY

1шт.

2

154697A1

O-RING

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

4

150409A1

WASHER

2шт.

Выбрано товаров: 4
