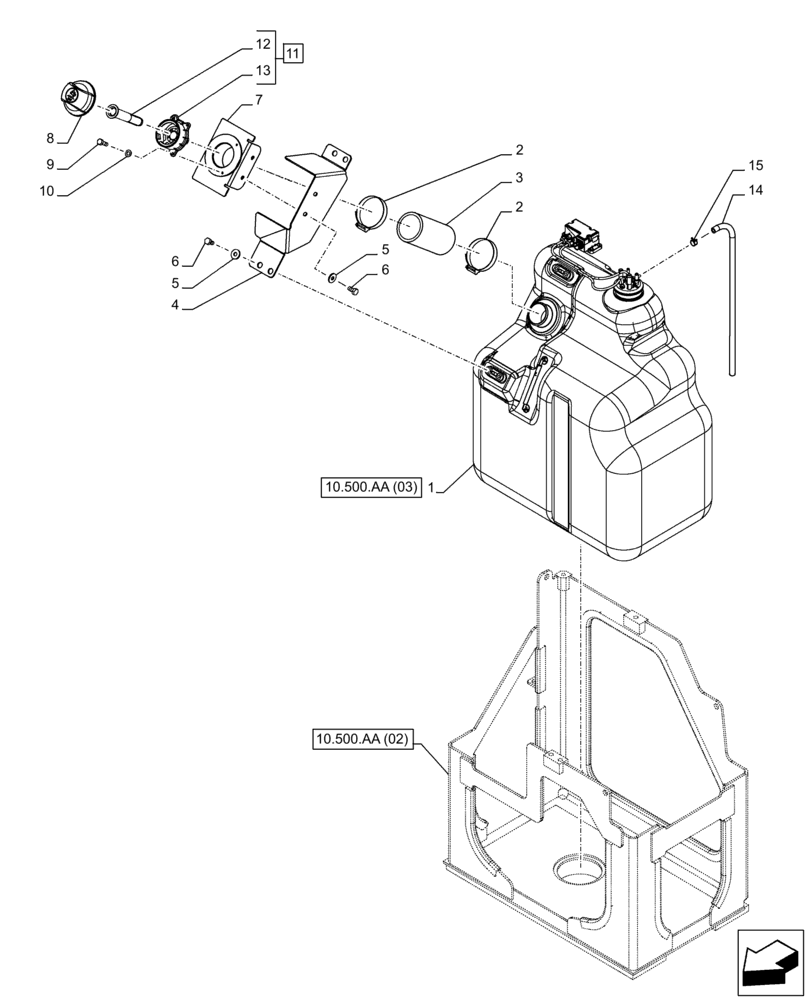

Запчасти Case CX210D LC LR (10.500.AA[01]) - DEF/ADBLUE™ TANK, COMPONENTS (10) - ENGINE

1

KBH14691

TANK

Urea (120 Liter), ASSY, Serial Range: -C0451

1шт.

See also Figure 10.500.AA (03), 55.988.AN

1шт.

1

KBH16770

TANK

Urea (120 Liter), ASSY, Start Serial: D0451

1шт.

See also Figure 10.500.AA (03), 55.988.AN

1шт.

2

164968A1

COLLAR

2шт.

3

KBH12480

HOSE

1шт.

4

KBH13570

BRACKET

1шт.

5

KHH16160

WASHER

8mm ID

6шт.

6

102R008A016N

BOLT

M8 x 16mm

6шт.

7

KBH13581

BRACKET

1шт.

8

KHH16980

FILLER CAP

Urea

1шт.

9

KHH15640

BOLT

M5 x 16mm

3шт.

10

KHH15650

WASHER

5mm ID

3шт.

11

KHH15591

FILTER

ASSY, Urea Tank, Incl 12, 13

1шт.

12

KHH16450

FILTER STRAINER

1шт.

13

KHH17420

BASE PLATE

1шт.

14

157779A1

HOSE

500mm

1шт.

15

165951A1

CLAMP

1шт.
