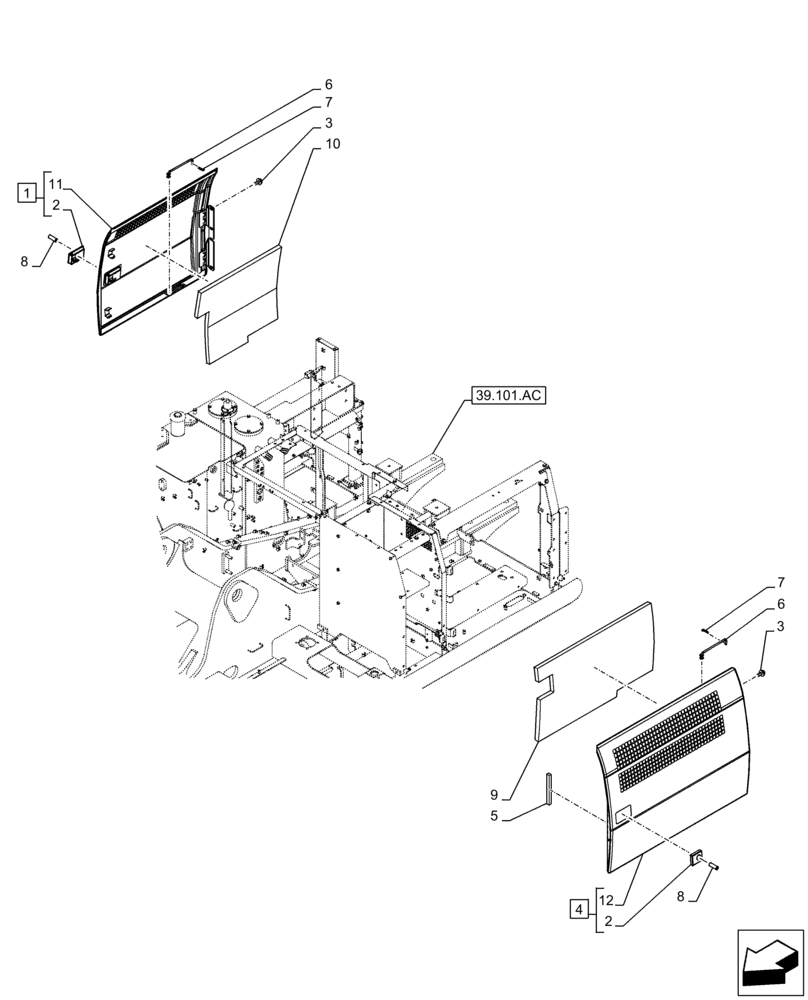

Запчасти Case CX210D LC LR (90.105.CO[02]) - STD + VAR - 488031 - SIDE DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KRN27960Y2

DOOR

ASSY, Incl 2, 11

1шт.

2

KHN24510

LOCK

2шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

4

KRN27950Y2

DOOR

ASSY, Incl 2, 12

1шт.

5

KBN17460

SEAL

1шт.

6

KBN17140

STAY

2шт.

7

153181A1

COTTER PIN

2шт.

8

KHN24530

LOCK CYLINDER

2шт.

9

KRN28080

INSULATION

1шт.

10

KRN28090

INSULATION

1шт.

11

NSS

NOT SOLD SEPARAT

Hood Right, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Hood Left, Incl in 4

1шт.
