(90.105.BV[02]) - STD + VAR - 488031, 481027 - HOUSING & COVERS

Запчасти Case CX210D LC LR (90.105.BV[02]) - STD + VAR - 488031, 481027 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

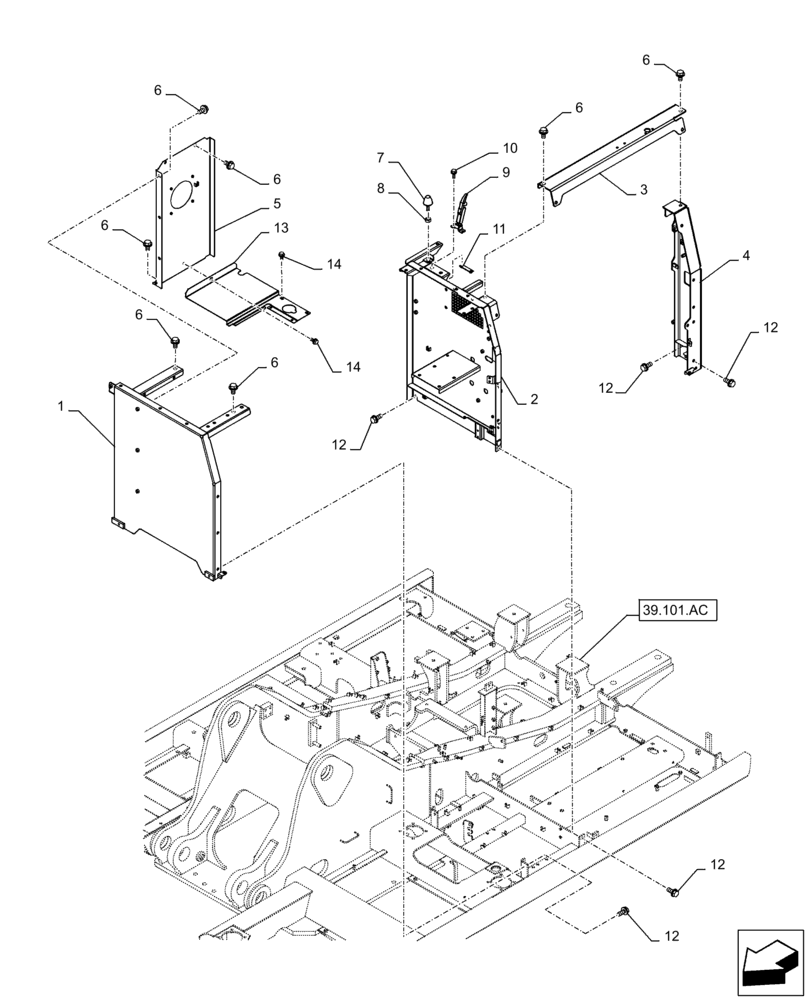

Схема запчастей Case CX210D LC LR - (90.105.BV[02]) - STD + VAR - 488031, 481027 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
6
7
8
6
9
6
12
6
11
6
3
14
12
6
39.101.ac
1
13
2
6
5
12
14
10
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN19570

FRAME

1шт.

2

KBN19671

FRAME

, Serial Range: -NFS7H1109

1шт.

2

KBN19672

FRAME

, Start Serial: NFS7H1110

1шт.

3

KBN20031

FRAME

1шт.

4

KRN27930

FRAME

, Serial Range: -NFS7H1109

1шт.

4

KRN27931

FRAME

, Serial Range: NFS7H1110-NFS7H1137

1шт.

4

KRN27932

FRAME

, Start Serial: NFS7H1138

1шт.

5

KBN19750

COVER

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

12шт.

7

151108A1

STOP

1шт.

8

KBH0446

NUT

M10 x 1.25

1шт.

9

150790A1

LATCH

1шт.

10

167182A1

BOLT,Sems, M8 x 25mm

M8 x 25mm

2шт.

11

KHN24200

PLATE

1шт.

12

166352A1

BOLT

M12 x 30mm

6шт.

13

KBN19790

COVER

1шт.

14

166350A1

BOLT

M8 x 20mm

3шт.
