(88.100.55[12]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT

Запчасти Case CX210D LC LR (88.100.55[12]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES

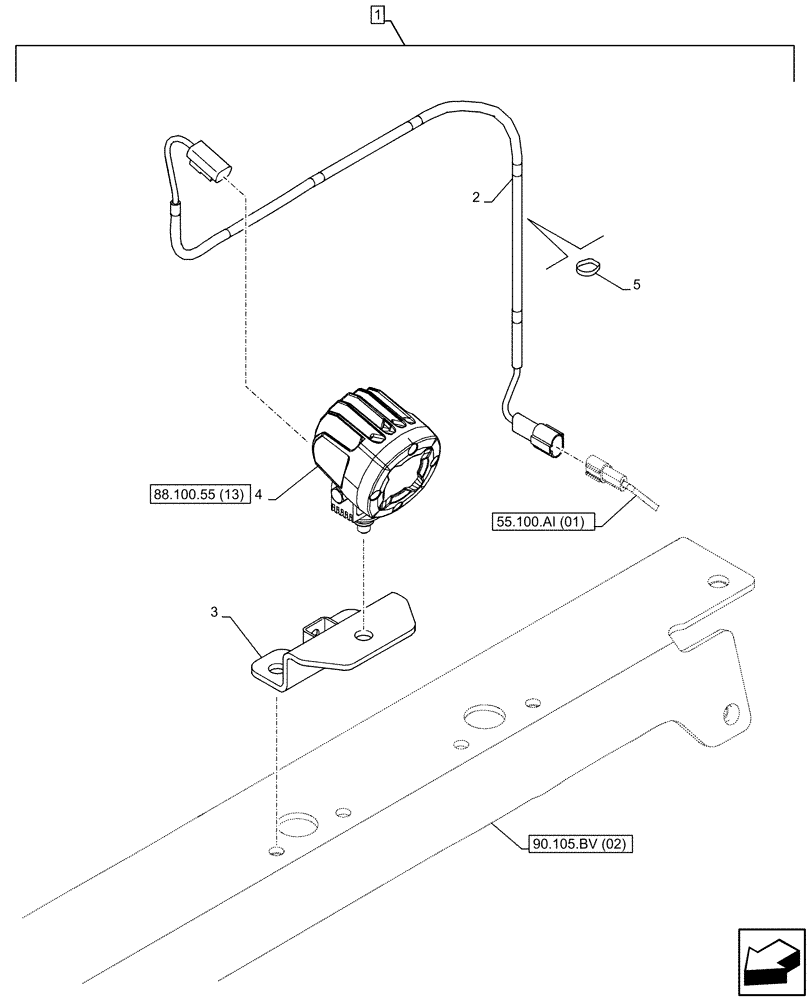

Схема запчастей Case CX210D LC LR - (88.100.55[12]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
1
90.105.bv (02)
3
55.100.ai (01)
4
5
2
88.100.55 (13)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0RR874-00

CONSTRUCTION DIA

Right, Left, Rear View Camera, Left Side Camera, Light, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR37950

WORK LAMP

Led 24V 13W, ASSY

1шт.

3

KHR41840

WIRE HARNESS

1шт.

4

KHR41830

BRACKET

1шт.

5

150496A1

MOUNTING CLIP

250mm

2шт.
