(88.100.35[213]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, WIRE HARNESS, PRESSURE SWITCH

Запчасти Case CX210D LC LR (88.100.35[213]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, WIRE HARNESS, PRESSURE SWITCH (88) - ACCESSORIES

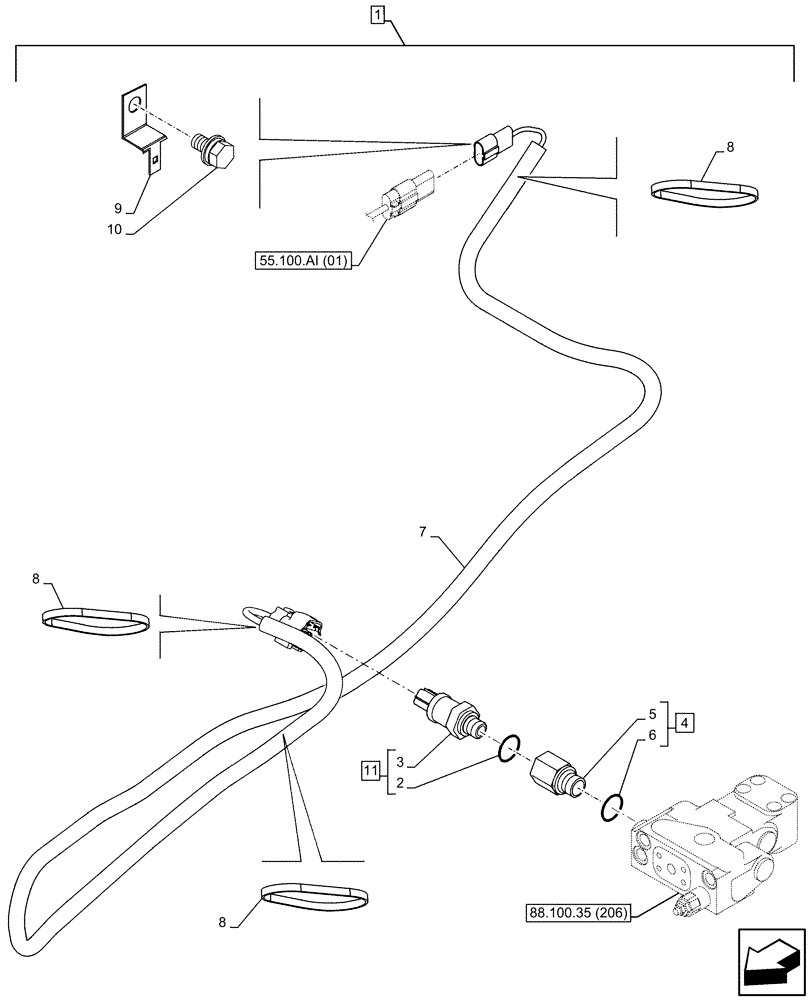

Схема запчастей Case CX210D LC LR - (88.100.35[213]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, WIRE HARNESS, PRESSURE SWITCH (88) - ACCESSORIES
9
8
3
8
88.100.35 (206)
5
1
10
2
4
55.100.ai (01)
7
8
6
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP389-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154483A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 11

1шт.

4

KHJ18180

STUD

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Stud, Incl in 4

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KHR11650

WIRE HARNESS

Safety Valve, Overload Alarm

1шт.

8

150496A1

MOUNTING CLIP

4шт.

9

158962A1

CLIP

1шт.

10

167518A1

BOLT

1шт.

11

KHR41950

SENSOR

ASSY, Pressure Sensor, 50MPa, Incl 2, 3

1шт.
