(88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX210D LC LR (88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

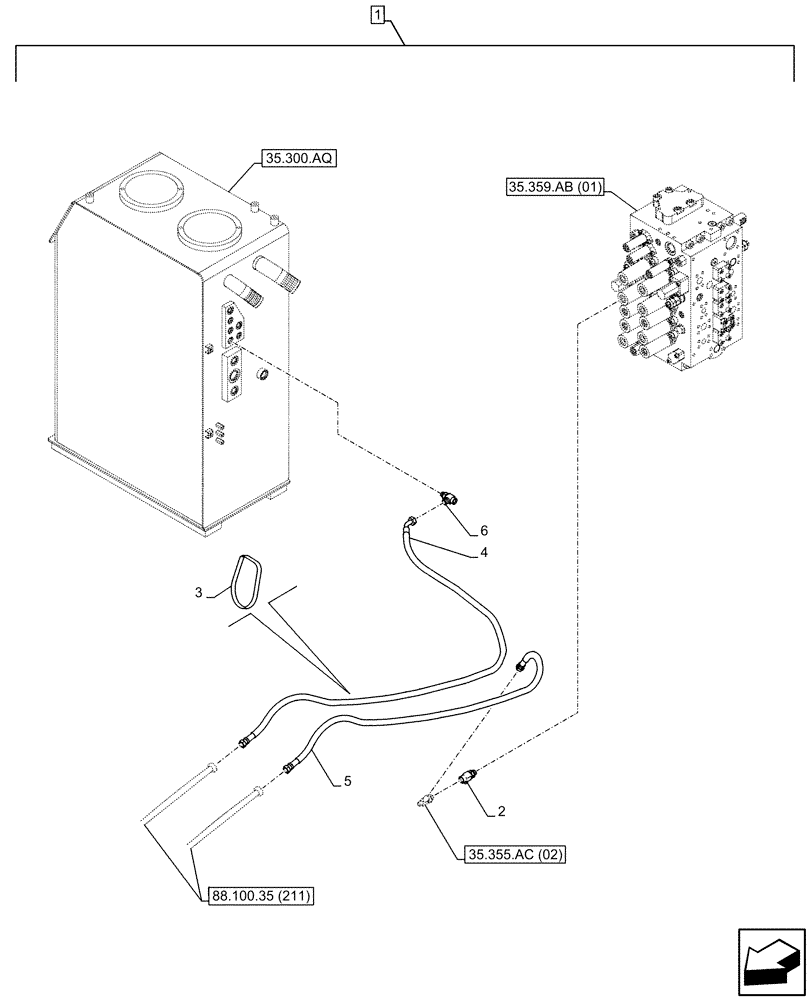

Схема запчастей Case CX210D LC LR - (88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
35.355.ac (02)
35.359.ab (01)
88.100.35 (211)
6
5
4
3
2
35.300.aq
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP389-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ31880

TEE

G3/8"

1шт.

3

150496A1

MOUNTING CLIP

250mm

8шт.

4

KHJ30750

HYDRAULIC HOSE

9mm ID x 1900mm

1шт.

5

KHJ18350

HYDRAULIC HOSE

1350mm

1шт.

6

KHJ11560

TEE

G1/4" x G3/8" X G1/4"

1шт.

Выбрано товаров: 7
