(88.100.35[211]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX210D LC LR (88.100.35[211]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

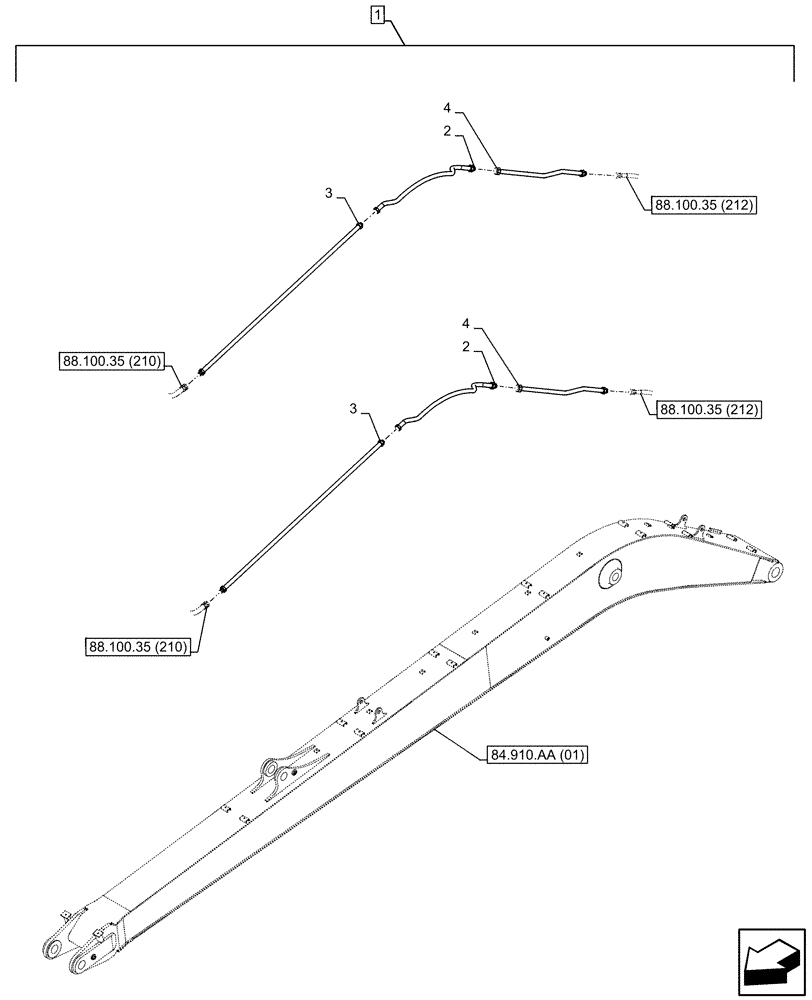

Схема запчастей Case CX210D LC LR - (88.100.35[211]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
88.100.35 (212)
2
84.910.aa (01)
4
88.100.35 (212)
88.100.35 (210)
88.100.35 (210)
4
3
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP389-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ16820

HYDRAULIC HOSE

2100mm

2шт.

3

KRV44920

TUBE

2шт.

4

KRV24290

HYD TUBE

2шт.
