(88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX210D LC LR (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

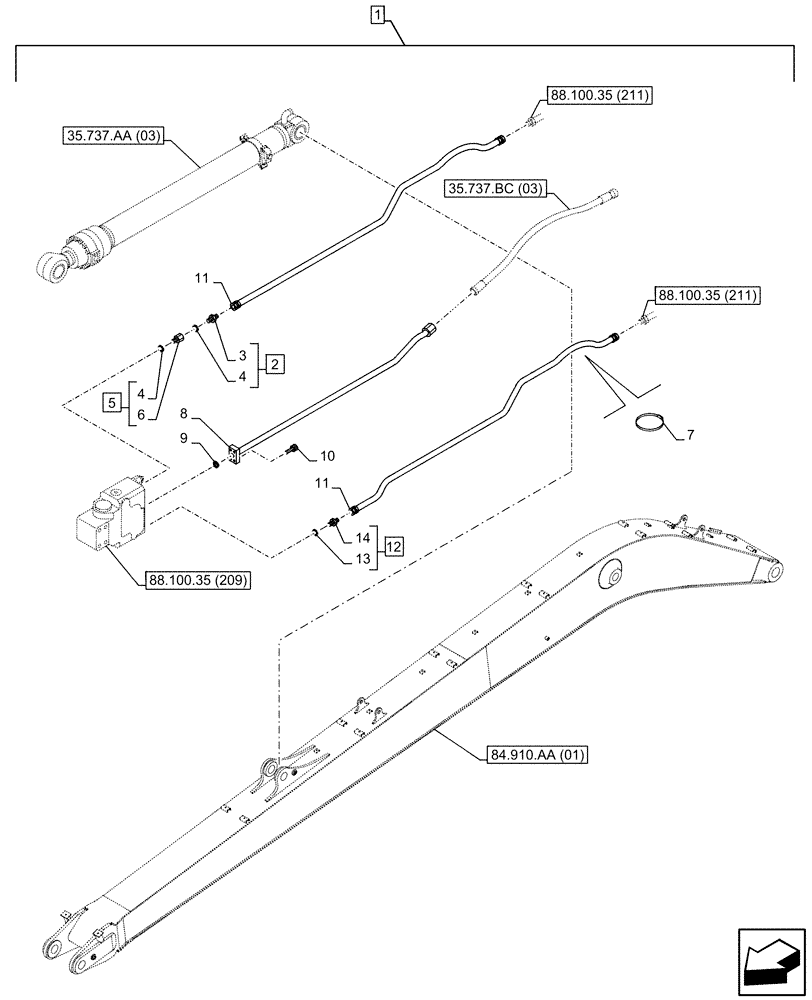

Схема запчастей Case CX210D LC LR - (88.100.35[210]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
7
88.100.35 (211)
4
9
8
6
11
5
88.100.35 (209)
4
2
13
35.737.aa (03)
1
14
88.100.35 (211)
84.910.aa (01)
12
35.737.bc (03)
11
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP389-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

152747A1

ADAPTER

ASSY, G1/4" x 3/8", Incl 3, 4 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Stud, Incl in 5

1шт.

7

150067A1

MOUNTING CLIP

16шт.

8

KRV24560

HYD TUBE

1шт.

9

155211A1

O-RING

1шт.

10

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

11

KHJ17480

HYDRAULIC HOSE

9mm ID x 2900mm

2шт.

12

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 13, 14

1шт.

13

154475A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.
