Запчасти Case CX210D LC LR (88.100.35[206]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

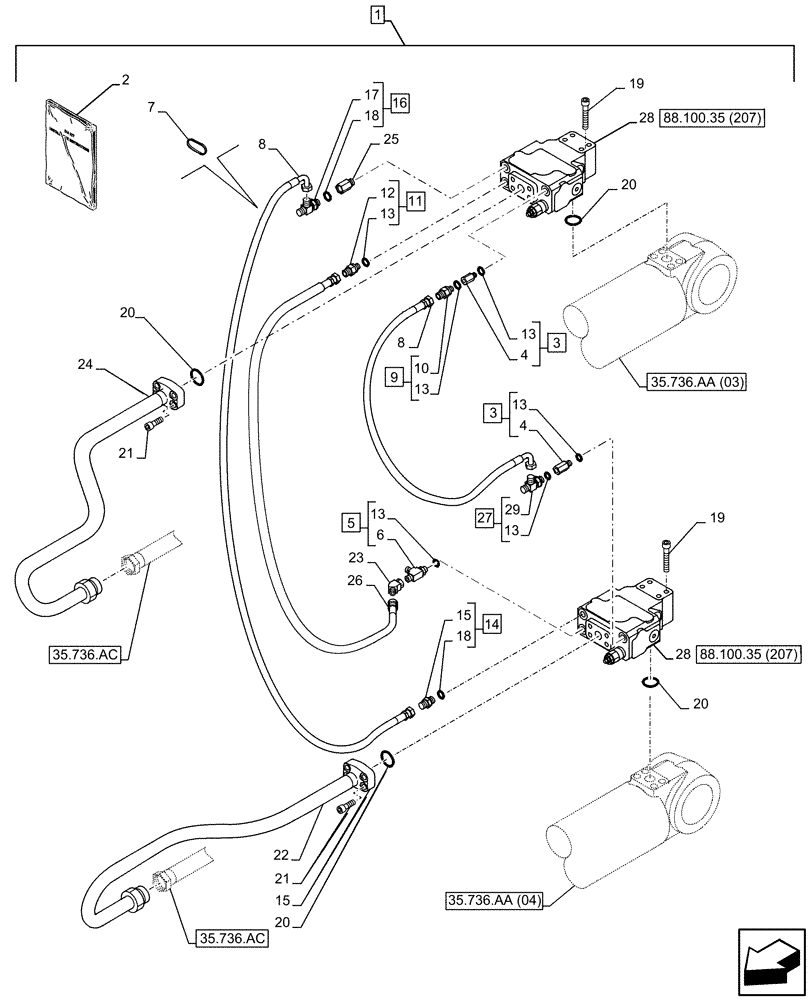

Схема запчастей Case CX210D LC LR - (88.100.35[206]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
19
13
13
88.100.35 (207)
4
35.736.ac
20
8
13
28
27
88.100.35 (207)
12
13
9
13
6
10
35.736.aa (03)
20
3
11
8
20
14
7
28
26
29
5
15
3
35.736.aa (04)
23
1
2
24
17
20
25
18
13
16
35.736.ac
21
21
18
22
19
4
15

Артикул

Название

Примечание

Количество

1

KG2RP389-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 29

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47928776

INSTRUCTION

1шт.

2

47929326

INSTRUCTION

1шт.

3

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 4, 13 (Qty 2)

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

5

167666A1

FITTING

ASSY, G1/4" x G1/4", Incl 6, 13 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 5

1шт.

7

150071A1

MOUNTING CLIP

380mm

1шт.

8

KHJ1435

HYDRAULIC HOSE

9mm ID x 1150mm

2шт.

9

152747A1

ADAPTER

ASSY, G1/4" x G3/8" x G3/8", Incl 10, 13 (Qty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 12, 13 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 15, 18 (Qty 1)

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

1шт.

16

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, G3/8" x G3/8", Incl 17, 18 (Qty 1)

1шт.

17

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 16

1шт.

18

154475A1

O-RING

2шт.

19

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

M10 x 70mm

8шт.

20

155210A1

O-RING

4шт.

21

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

M10 x 35mm

8шт.

22

KRV12070

HYD TUBE

1шт.

23

KHJ1222

ELBOW

1шт.

24

KRV12080

HYD TUBE

1шт.

25

KHV0373

STUD

G3/8" x G3/8"

1шт.

26

KRV19790

HYDRAULIC HOSE

1150mm

1шт.

27

162827A1

TEE

ASSY, G1/4" x G3/8" x G3/8", Incl 13 (Qty 1), 29

1шт.

28

KRV11110

VALVE SECTION

ASSY

2шт.

29

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 27

1шт.

Выбрано товаров: 31
