(88.100.35[147]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, ARM, STOP, VALVE, LINE

Запчасти Case CX210D LC LR (88.100.35[147]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, ARM, STOP, VALVE, LINE (88) - ACCESSORIES

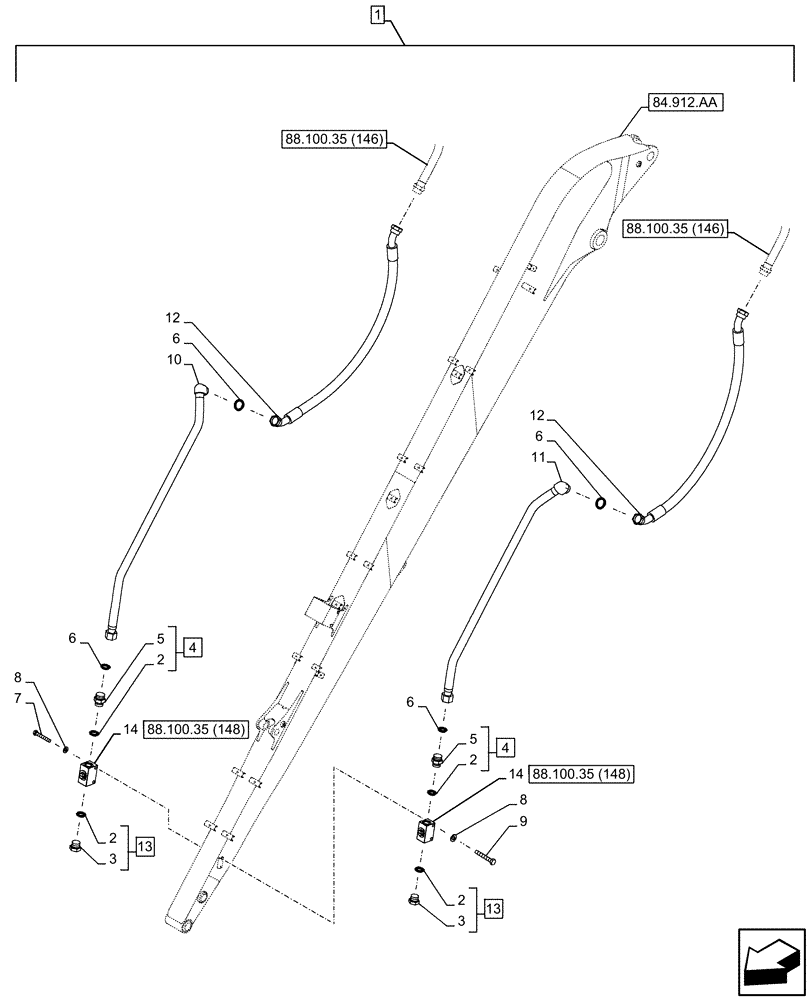

Схема запчастей Case CX210D LC LR - (88.100.35[147]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, ARM, STOP, VALVE, LINE (88) - ACCESSORIES
13
6
6
4
2
12
3
8
1
2
88.100.35 (146)
5
7
88.100.35 (148)
88.100.35 (146)
84.912.aa
10
14
13
6
4
11
14
6
12
8
5
88.100.35 (148)
9
3
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP386-00

CONSTRUCTION DIA

Double Acting Circuit Pedal, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

152211A1

O-RING

4шт.

3

NSS

NOT SOLD SEPARAT

Plug, Incl in 13

2шт.

4

KHJ1349

ADAPTER

ASSY, Incl 2 (Qty 2), 5

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

7

862-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

2шт.

8

150811A1

WASHER

4шт.

9

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

10

KRV24350

HYD TUBE

RH

1шт.

11

KRV24360

HYD TUBE

LH

1шт.

12

KRV27950

HYDRAULIC HOSE

2шт.

13

162659A1

PLUG

ASSY, Incl 2 (Qty 2), 3

2шт.

14

KHV10430

SHUT-OFF VALVE

ASSY

2шт.
