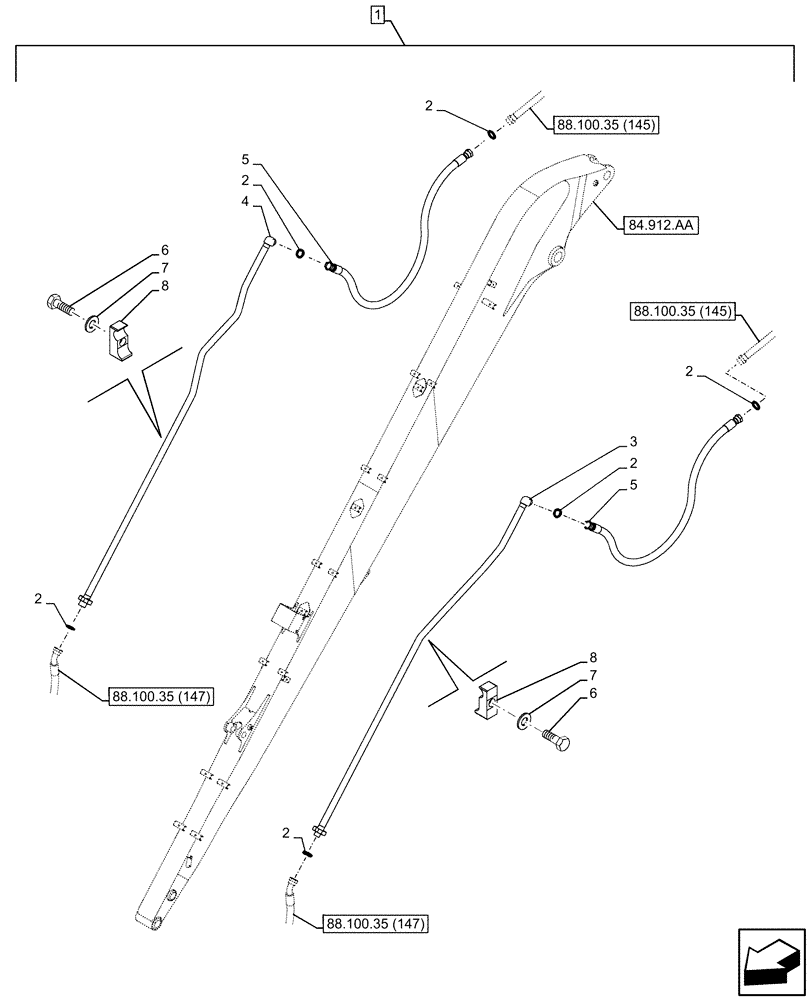

Запчасти Case CX210D LC LR (88.100.35[146]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, ARM, LINE (88) - ACCESSORIES

1

KG2RP386-00

CONSTRUCTION DIA

Double Acting Circuit Pedal, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

3

KRV24340

HYD TUBE

LH

1шт.

4

KRV24330

HYD TUBE

RH

1шт.

5

KBV17160

HYDRAULIC HOSE

2шт.

6

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

7

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

12шт.

8

150777A1

COLLAR

12шт.
