Запчасти Case CX210D LC LR (88.100.35[139]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, PRESSURE SENSOR, RELIEF VALVE, LINE (88) - ACCESSORIES

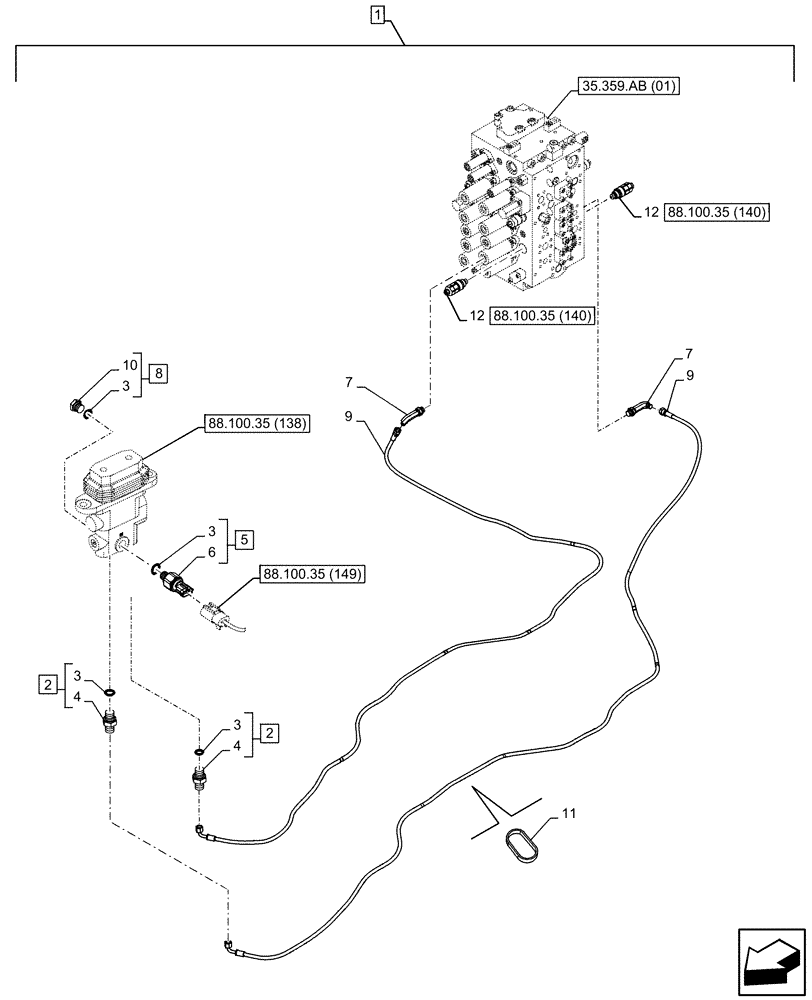

Схема запчастей Case CX210D LC LR - (88.100.35[139]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, PRESSURE SENSOR, RELIEF VALVE, LINE (88) - ACCESSORIES
6
88.100.35 (138)
3
3
7
3
3
1
10
88.100.35 (149)
9
9
12
4
35.359.ab (01)
4
88.100.35 (140)
5
11
7
2
8
2
12
88.100.35 (140)

Артикул

Название

Примечание

Количество

1

KG2RP386-00

CONSTRUCTION DIA

Double Acting Circuit Pedal, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 3 (Qty 2), 4

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

2шт.

5

KHR26940

SENSOR

ASSY, Incl 3 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Sensor, Incl in 5

1шт.

7

KHJ28880

ELBOW

2шт.

8

159002A1

PLUG

ASSY, Incl 3 (Qty 1), 10

1шт.

9

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

Remote Control Valve to Control Valve

2шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

11

150498A1

MOUNTING CLIP

L=297mm

8шт.

12

155745A1

VALVE PRESSURE RELIE

ASSY

2шт.

Выбрано товаров: 13
