Запчасти Case CX210D LC LR (88.100.35[113]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, STOP, VALVE, COMPONENTS (88) - ACCESSORIES

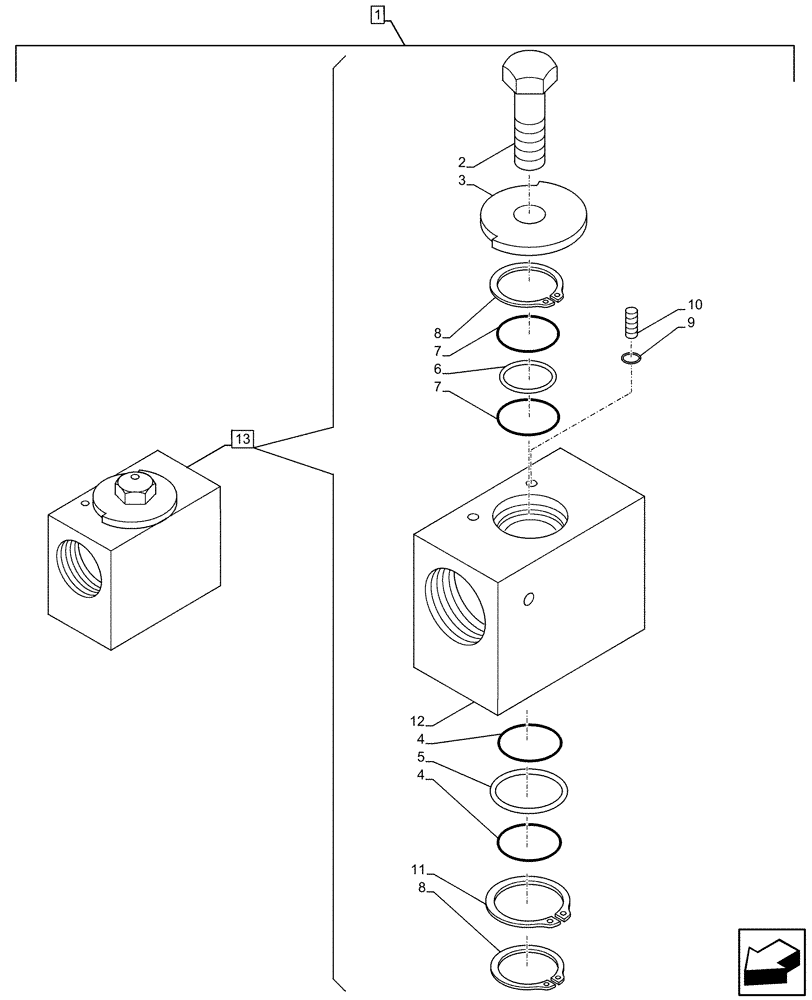

Схема запчастей Case CX210D LC LR - (88.100.35[113]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, STOP, VALVE, COMPONENTS (88) - ACCESSORIES
10
8
2
12
3
11
7
7
1
6
5
13
4
4
8
9

Артикул

Название

Примечание

Количество

1

KG2RP388-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Bolt, Incl in 13

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Incl in 13

1шт.

4

154508A1

O-RING

2шт.

5

153986A1

BACK-UP RING

1шт.

6

153976A1

BACK-UP RING

1шт.

7

154495A1

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

Ring, Incl in 13

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Incl in 13

1шт.

10

NSS

NOT SOLD SEPARAT

Bolt, Incl in 13

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Incl in 13

1шт.

12

NSS

NOT SOLD SEPARAT

Body, Incl in 13

1шт.

13

KHV10440

VALVE

ASSY, Incl 2 - 12

1шт.

Выбрано товаров: 14
