(88.100.35[111]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, ARM, LINE

Запчасти Case CX210D LC LR (88.100.35[111]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, ARM, LINE (88) - ACCESSORIES

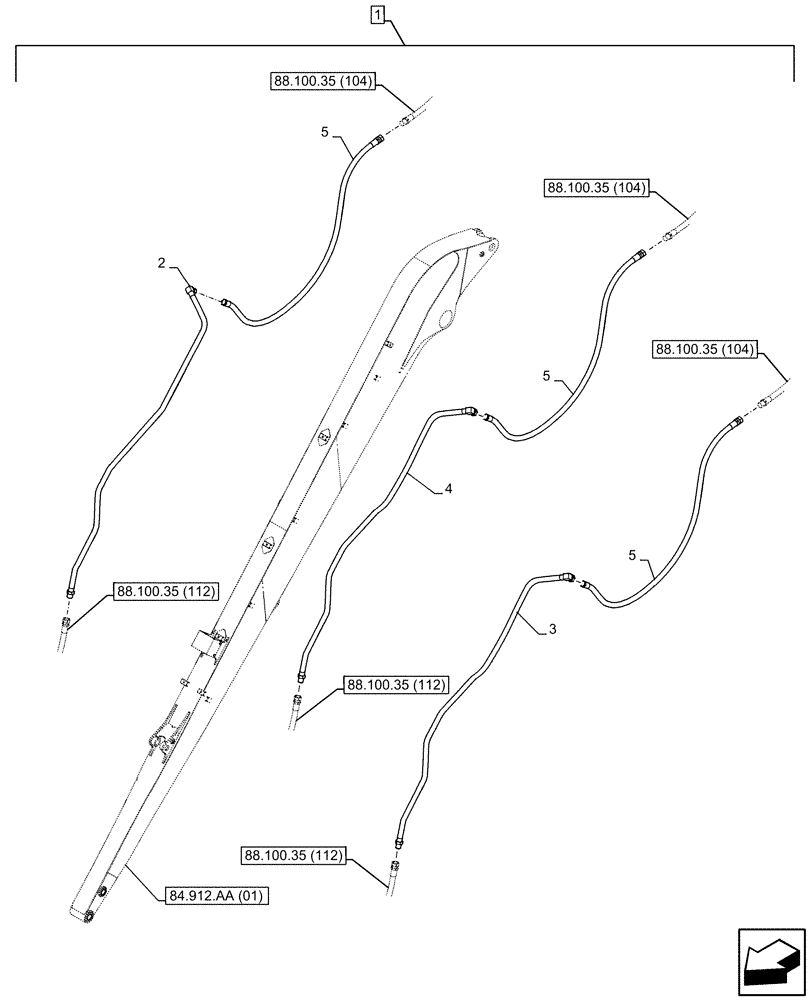

Схема запчастей Case CX210D LC LR - (88.100.35[111]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, ARM, LINE (88) - ACCESSORIES
1
3
88.100.35 (104)
88.100.35 (112)
4
84.912.aa (01)
88.100.35 (104)
5
88.100.35 (112)
5
5
2
88.100.35 (104)
88.100.35 (112)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP388-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRV45030

PIPE

RH

1шт.

3

KRV45020

PIPE

1шт.

4

KRV45010

PIPE

1шт.

5

KRV43990

HYDRAULIC HOSE

12mm ID x 1550mm

3шт.
