(88.100.35[110]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, SOLENOID VALVE, COMPONENTS

Запчасти Case CX210D LC LR (88.100.35[110]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, SOLENOID VALVE, COMPONENTS (88) - ACCESSORIES

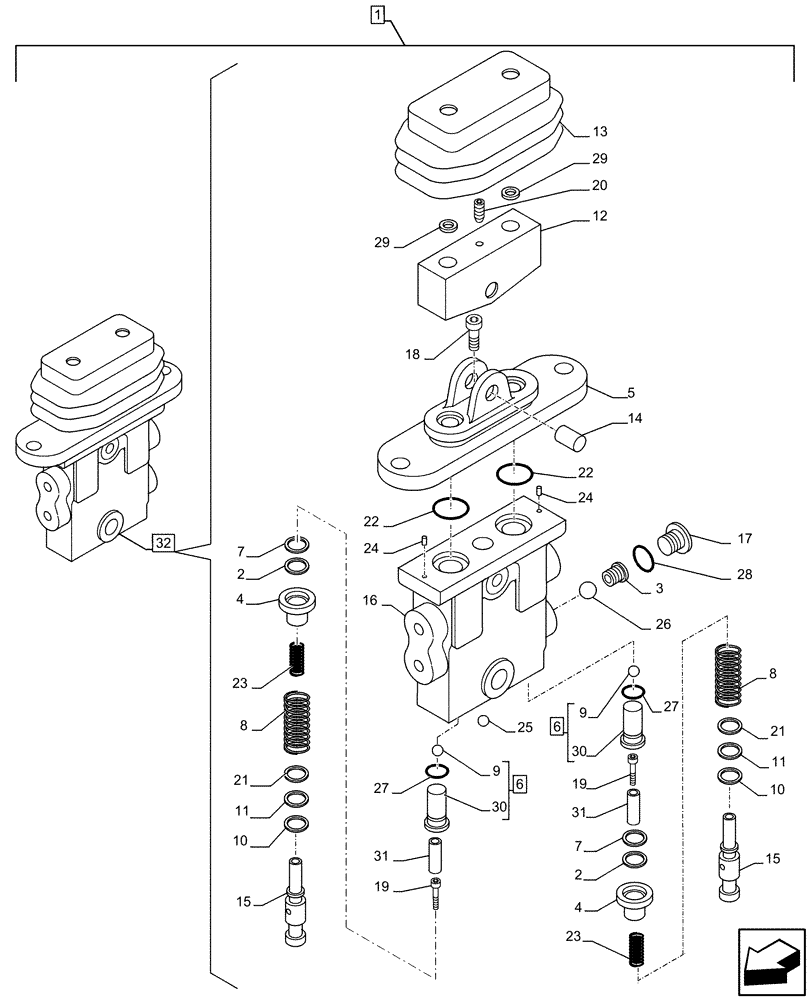

Схема запчастей Case CX210D LC LR - (88.100.35[110]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, SOLENOID VALVE, COMPONENTS (88) - ACCESSORIES
21
18
29
9
30
6
11
31
29
2
16
17
8
9
7
19
15
23
23
32
31
25
3
24
22
28
15
27
13
30
27
5
1
10
21
6
4
7
2
8
11
20
4
26
12
19
10
24
14
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP388-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 32

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

155570A1

SHIM

2шт.

3

160245A1

SEAT

1шт.

4

160848A1

SLEEVE

2шт.

5

156280A1

COVER

1шт.

6

155754A1

VALVE

ASSY, Incl 9, 30

2шт.

7

155571A1

SHIM

2шт.

8

LG00345

COMPRESSION SPRING

2шт.

9

NSS

NOT SOLD SEPARAT

Ball, Incl in 6

2шт.

10

LH00029

SHIM

2шт.

11

LH00255

SHIM

2шт.

12

TF00005

CAM

1шт.

13

LQ00025

BELLOWS

1шт.

14

LA00706

DOWEL

1шт.

15

NSS

NOT SOLD SEPARAT

Spool, Incl in 6

2шт.

16

NSS

NOT SOLD SEPARAT

Body, Incl in 32

1шт.

17

160083A1

PLUG

1шт.

18

861-12025

HEX SOC SCREW,M12 x 25mm, Cl 12.9

1шт.

19

156179A1

FLANGE BOLT

2шт.

20

878-1088

SET SCREW,Hex Skt, M8 x 8mm, Cup Pt

1шт.

21

156178A1

WASHER

2шт.

22

156903A1

O-RING

2шт.

23

LG007300

COMPRESSION SPRING

2шт.

24

LA010650

DOWEL

2шт.

25

LX00041

BALL

1шт.

26

167013A1

BALL

1шт.

27

154462A1

O-RING

2шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

156177A1

WASHER

2шт.

30

NSS

NOT SOLD SEPARAT

Pusher, Incl in 6

2шт.

31

160849A1

COLLAR

2шт.

32

KHJ24720

CONTROL BLOCK

ASSY, Incl 2 - 31

1шт.
