(88.100.35[109]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, SOLENOID VALVE

Запчасти Case CX210D LC LR (88.100.35[109]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, SOLENOID VALVE (88) - ACCESSORIES

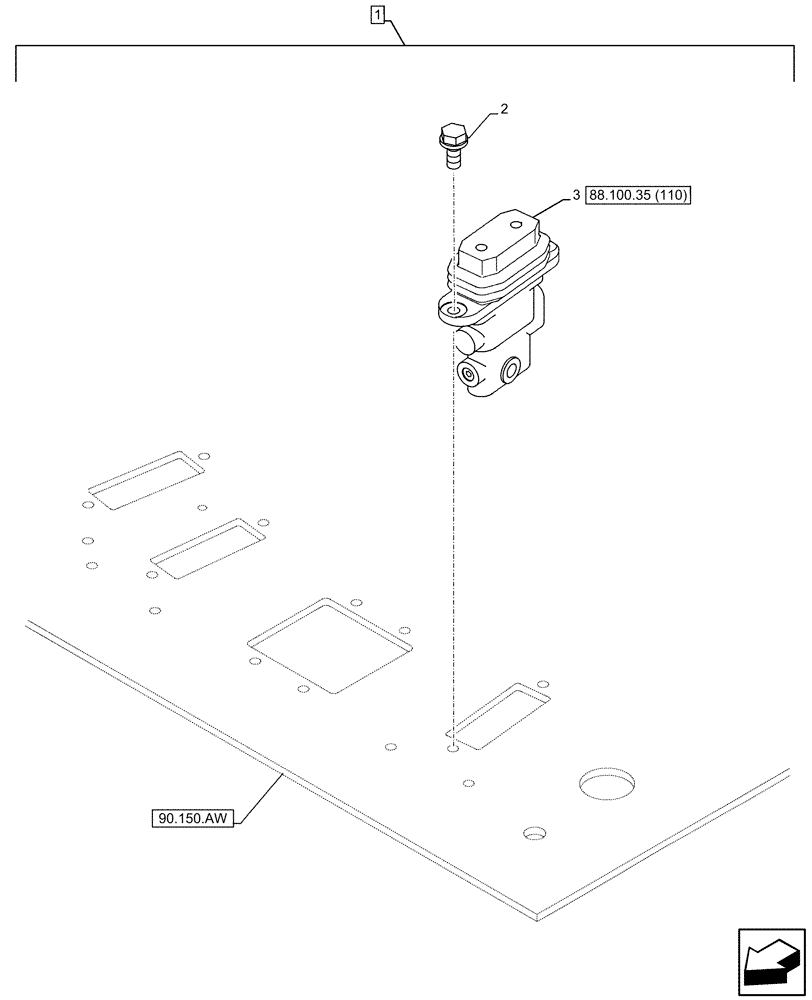

Схема запчастей Case CX210D LC LR - (88.100.35[109]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, SOLENOID VALVE (88) - ACCESSORIES
88.100.35 (110)
3
1
2
90.150.aw
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP388-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

166052A1

BOLT

M10 x 25mm

2шт.

3

KHJ24720

CONTROL BLOCK

ASSY

1шт.
