(88.100.35[107]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, CONTROL VALVE

Запчасти Case CX210D LC LR (88.100.35[107]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, CONTROL VALVE (88) - ACCESSORIES

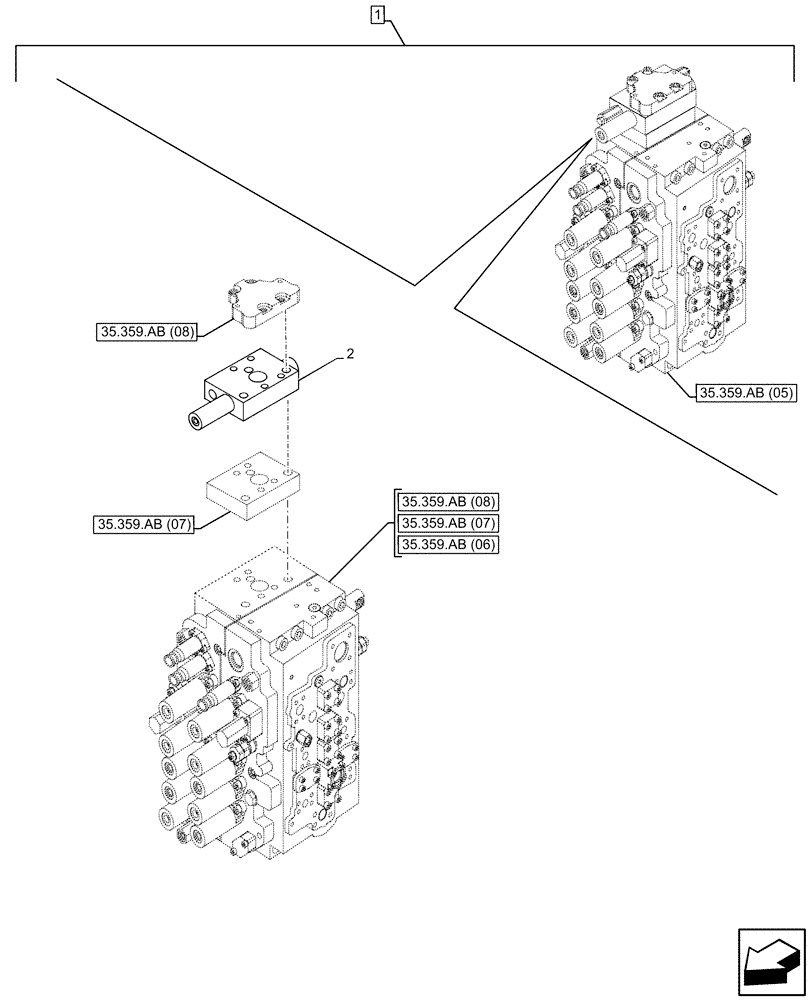

Схема запчастей Case CX210D LC LR - (88.100.35[107]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, CONTROL VALVE (88) - ACCESSORIES
35.359.ab (07)
2
1
35.359.ab (08)
35.359.ab (08)
35.359.ab (06)
35.359.ab (07)
35.359.ab (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP388-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRJ10330

CONTROL VALVE

1шт.

Выбрано товаров: 3
