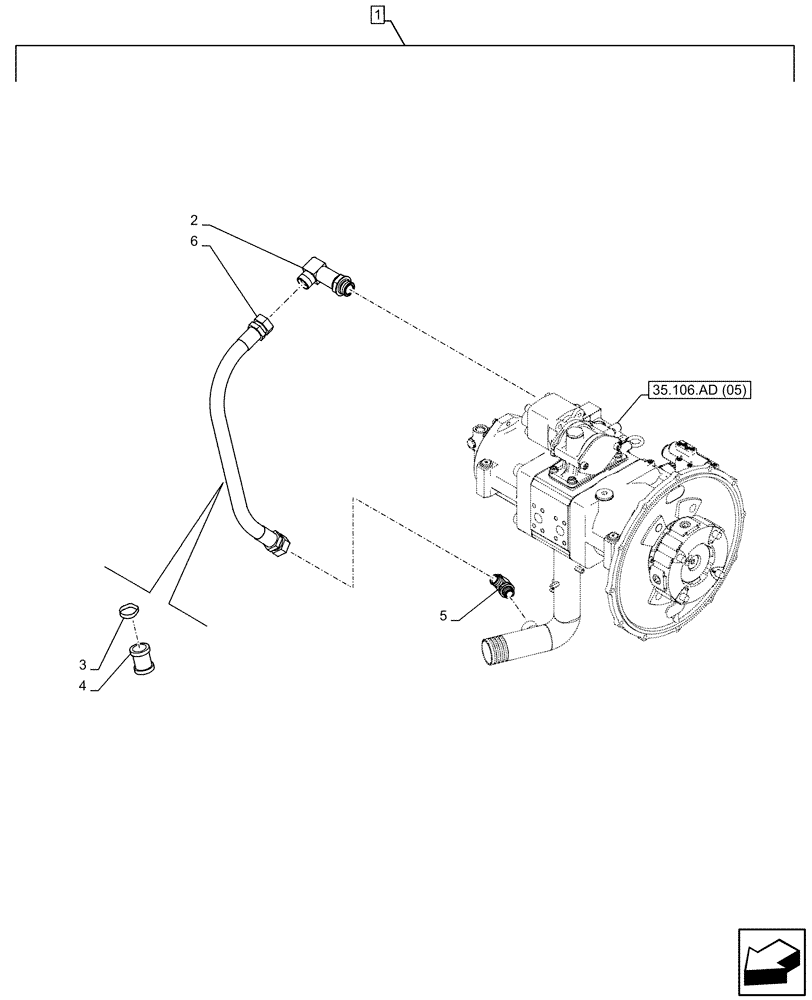

Запчасти Case CX210D LC LR (88.100.35[105]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, VARIABLE DELIVERY HYDRAULIC PUMP, LINE (88) - ACCESSORIES

1

KG2RP388-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ24380

ELBOW

G1"

1шт.

3

150496A1

MOUNTING CLIP

250mm

1шт.

4

KHJ21550

HOSE CLAMP

1шт.

5

KHJ23010

TEE

G3/4" x G1" x G1"

1шт.

6

KUJ10310

HYDRAULIC HOSE,25.40 mm ID x 670.00 mm

25mm ID x 670mm

1шт.
