(88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, BOOM, LINE

Запчасти Case CX210D LC LR (88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

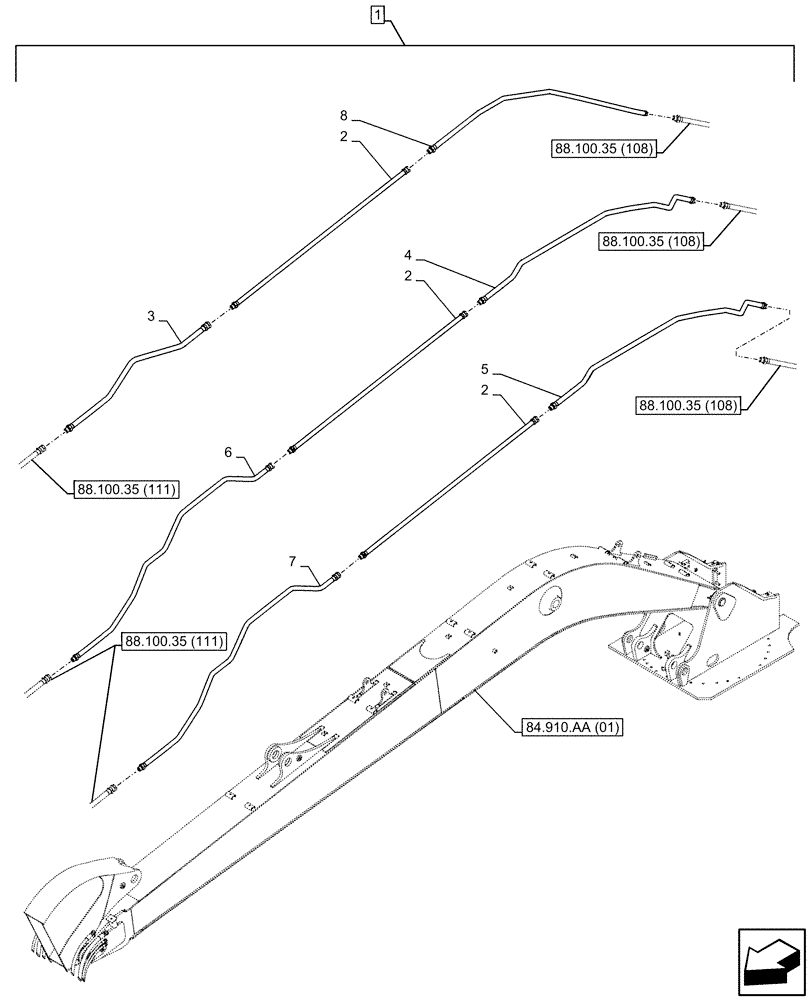

Схема запчастей Case CX210D LC LR - (88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES
2
2
4
6
5
8
88.100.35 (108)
88.100.35 (111)
88.100.35 (108)
1
84.910.aa (01)
88.100.35 (111)
3
7
88.100.35 (108)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP388-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRV44200

PIPE

RH

3шт.

3

KRV44240

PIPE

RH

1шт.

4

KRV44960

PIPE

LH

1шт.

5

KRV44990

PIPE

LH

1шт.

6

KRV44970

PIPE

LH

1шт.

7

KRV45000

PIPE

LH

1шт.

8

KRV44980

PIPE

RH

1шт.

Выбрано товаров: 9
